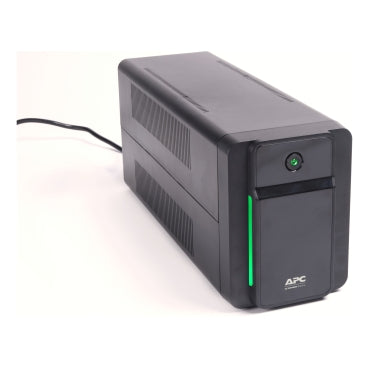

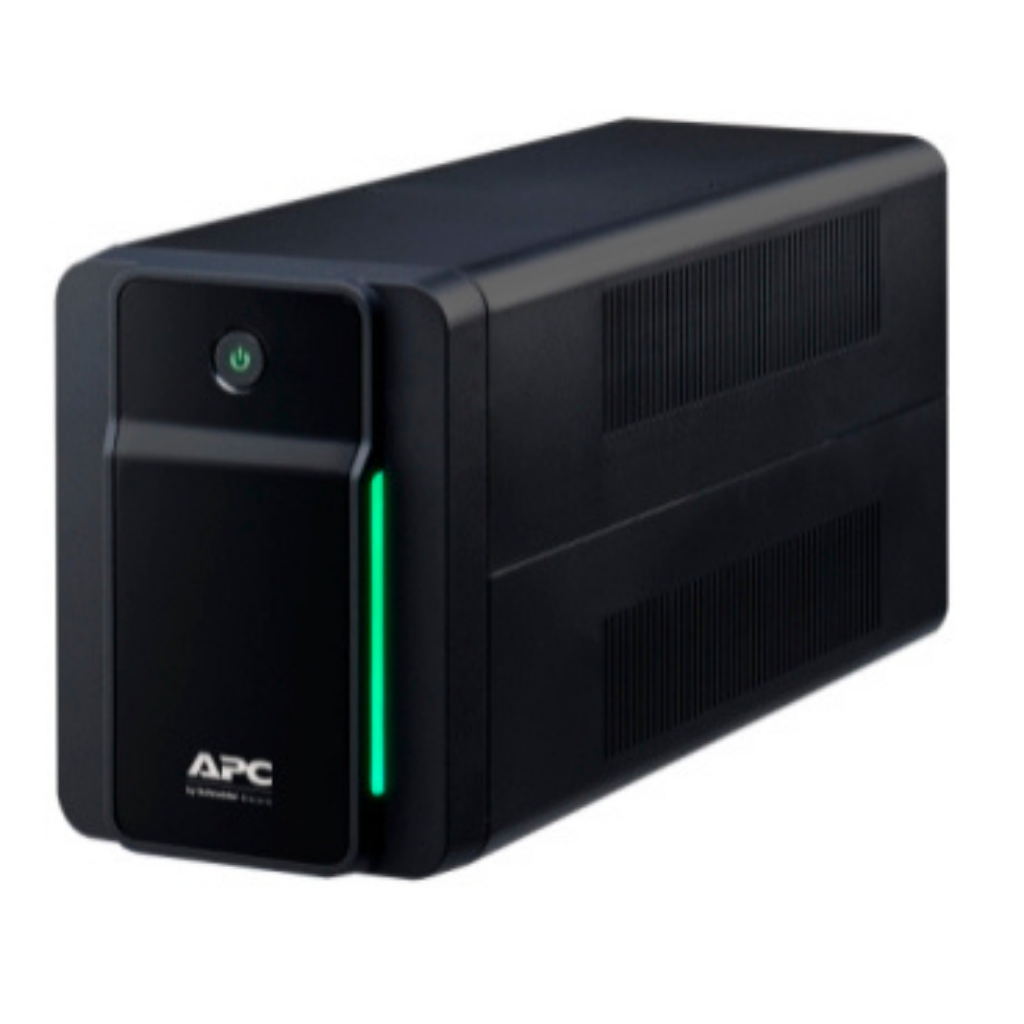

• APC BX950MI-FR Back-UPS, 950VA, Tower, 230V, 4x CEE 7/5 French Schuko Outlets

  This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 950VA tower UPS has 4 total outlets, all of which provide battery back up and surge protection. It has a surge energy rating of 273 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 2-year warranty and CE product certification.

• Main
  Run time for load	520 W
  	Min-max: 52-520 W
  	0min 29s
  Max. Capacity Used	100 %
  Main Input Voltage	230 V
  Rated power in W	520 W
  Rated power in VA	950 VA
  Input Connection Type	French/Belgian

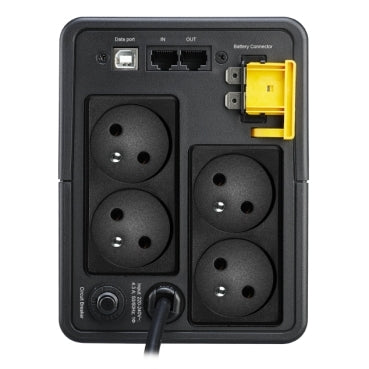

  Output Connection Type	4 French
  Cable length	1.22 m
  Number of cables	1
  Battery type	Lead-acid battery
  Batteries & Runtime
  Run Time	View Runtime Graph
  Efficiency	View Efficiency Graph
  Number of battery filled slots	0
  Number of battery free slots	0
  Battery recharge time	8 h
  Battery voltage	12 V
  Battery capacity	9.0 Ah
  Battery life	3…5 year(s)
  Replacement battery	RBC17
  Battery graph comments	Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
  Extended runtime	0
  General
  Provided equipment	User manual
  Number of power module free slots	0
  Number of power module filled slots	0
  Redundant	No
  Physical
  Colour	Black
  Height	16 cm
  Width	12 cm
  Depth	35.5 cm
  Net weight	6.1 kg
  Mounting preference	No preference
  Mounting mode	Not rack-mountable
  	Two post mountable: 0
  USB compatible	No
  Input
  Network frequency	50/60 Hz +/- 5 Hz auto-sensing
  Plug standard	French/Belgian
  Input voltage limits	140…300 V
  Input Power Factor at Full Load	0.54
  Output
  Maximum configurable power in W	520 W
  Output frequency	50/60 Hz +/- 1 Hz sync to mains
  UPS type	Line interactive
  Wave type	Stepped approximation to a sinewave
  Full load runtime	00:01:00 480 W
  Half load runtime	00:06:30 240 W
  Maximum configurable power in VA	950 VA
  Transfer time	6 ms typical : 10 ms maximum
  Conformance
  Product certifications	CE, CB
  Standards	EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
  Equipment protection policy	Lifetime: 50000 euros
  Environmental
  Ambient air temperature for operation	0…40 °C
  Relative humidity	0…95 % non-condensing
  Operating altitude	0…3000 m
  Ambient air temperature for storage	-15…40 °C
  Storage Relative Humidity	0…95 % non-condensing
  Storage altitude	0…3000 m
  Acoustic level	40 dBA
  IP degree of protection	IP20
  Communications & Management
  Control panel	LED Status display with on line : on battery
  Surge Protection and Filtering
  Surge energy rate	273 J
  Packing Units
  Unit Type of Package 1	PCE
  Number of Units in Package 1	1
  Package 1 Height	25 cm
  Package 1 Width	43 cm
  Package 1 Length	19.7 cm
  Package 1 Weight	7.303 kg
  Unit Type of Package 2	P12
  Number of Units in Package 2	12
  Package 2 Height	65 cm
  Package 2 Width	80 cm
  Package 2 Length	120 cm
  Package 2 Weight	12.088 kg
  SCC14	10731304413568
  Contractual warranty
  Warranty	2 years repair or replace
