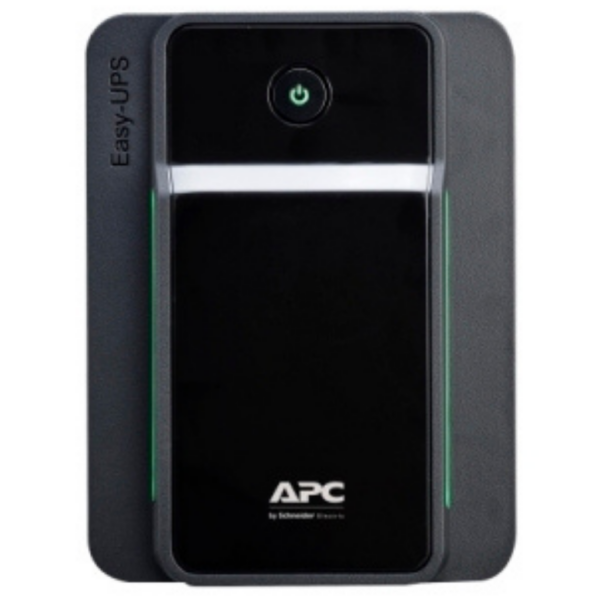

APC BVX700LI-GR Easy UPS, 700VA, Tower, 230V, 2x CEE 7/3 Schuko Outlets

• Specifications
• Downloads

• APC BVX700LI-GR Easy UPS, 700VA, Tower, 230V, 2x CEE 7/3 Schuko Outlets

  Category	Details
  Max. Capacity Used	100 %
  Main Input Voltage	230 V AC 1 phase
  Main Output Voltage	230 V AC 1 phase
  Rated power in W	360 W
  Rated power in VA	700 VA
  Input Connection Type	Schuko
  Output Connection Type	2 Schuko
  Cable length	1.22 m
  Number of cables	1
  Battery type	Lead-acid battery
  Provided equipment	User manual
  Batteries & Runtime
  Run Time	View Runtime Graph
  Efficiency	View Efficiency Graph
  Number of battery filled slots	0
  Number of battery free slots	0
  Battery recharge time	8 h
  Battery voltage	12 V
  Battery capacity	7.0 Ah
  Battery life	2…3 year(s)
  Replacement battery	APCRBC110
  Extended runtime	0
  General
  Max runtime	120 min
  Number of power module free slots	0
  Number of power module filled slots	0
  Redundant	No
  UPS size	WS
  Physical
  Colour	Black
  Height	13.8 cm
  Width	9.8 cm
  Depth	31 cm
  Net weight	4.2 kg
  Mounting support	Floor
  Mounting preference	No preference
  Mounting mode	Not rack-mountable
  	Two post mountable
  USB compatible	No
  Input
  Network frequency	50/60 Hz +/- 5 Hz auto sensing
  Input voltage limits	140…300 V 230 V AC
  Cos phi	0.51
  Output
  Maximum configurable power in W	360 W
  Output frequency	50/60 Hz +/- 1 Hz sync to mains
  UPS type	Line interactive
  Wave type	Stepped approximation to a sinewave
  Full load runtime	00:00:01 360 W
  Graph display	1
  Half load runtime	00:06:00 180 W
  Maximum configurable power in VA	700 VA
  Transfer time	6 ms typical : 10 ms maximum
  Conformance
  Product certifications	CE
  	CB
  Standards	EN/IEC 62040-1:2019/A11:2021
  	EN/IEC 62040-2:2006/AC:2006
  	EN/IEC 62040-2:2018
  Equipment protection policy	Lifetime : 50000 euros
  Environmental
  Ambient air temperature for operation	0…40 °C
  Relative humidity	0…95 % non-condensing
  Operating altitude	0…3000 m
  Ambient air temperature for storage	-15…40 °C
  Storage Relative Humidity	0…95 % non-condensing
  Storage altitude	0…3000 m
  Acoustic level	40 dBA
  IP degree of protection	IP20
  Surge Protection and Filtering
  Surge energy rate	273 J
  Packing Units
  Unit Type of Package 1	PCE
  Number of Units in Package 1	1
  Package 1 Height	22.2 cm
  Package 1 Width	34.6 cm
  Package 1 Length	14.2 cm
  Package 1 Weight	4.5 kg
  SCC14	10731304404580
  Contractual warranty	Warranty
  	2 years repair or replace
