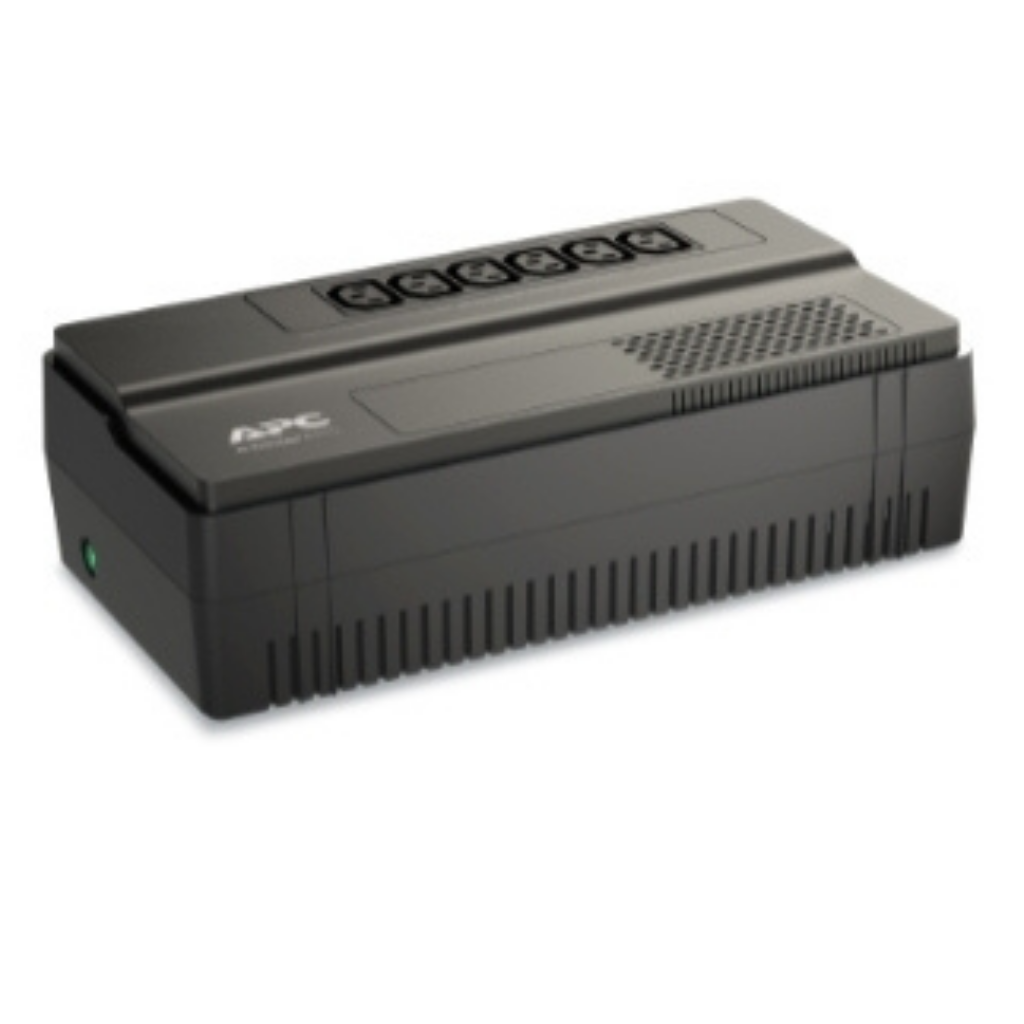

APC BV650I Easy UPS, 650VA, Floor/Wall Mount, 230V, 6x IEC C13 Outlets

• Specifications
• Downloads

• APC BV650I Easy UPS, 650VA, Floor/Wall Mount, 230V, 6x IEC C13 Outlets

  Category	Description
  Overview
  Lead time	Usually in Stock
  Main
  Main Input Voltage	230 V
  Main Output Voltage	230 V
  Rated power in W	375 W
  Rated power in VA	650 VA
  Input Connection Type	IEC 60320 C14
  Output connection type	6 IEC 60320 C13
  Cable length	1.50 m
  Number of cables	1
  Battery type	Lead-acid battery
  Provided equipment	User manual
  Batteries & Runtime
  Efficiency	View Efficiency Graph
  Number of battery filled slots	0
  Number of battery free slots	0
  Battery recharge time	8 h
  Battery voltage	12 V
  Battery capacity	7.0 Ah
  Battery life	3…5 year(s)
  Replacement battery	APCRBCV210
  Extended runtime	0
  General
  Number of power module free slots	0
  Number of power module filled slots	0
  Redundant	No
  UPS size	WS
  Physical
  Colour	Black
  Height	9.25 cm
  Width	16.05 cm
  Depth	30.5 cm
  Net weight	4.5 kg
  Mounting preference	No preference
  Mounting mode	Not rack-mountable
  	Two post mountable
  USB compatible	No
  Input
  Network frequency	50/60 Hz +/- 5 Hz auto-sensing
  Input voltage limits	170…280 V
  Output
  Maximum configurable power in W	375 W
  Output frequency	50/60 Hz +/- 1 Hz unsynchronised
  UPS type	Line interactive
  Wave type	Stepped approximation to a sinewave
  Graph display	1
  Maximum configurable power in VA	650 VA
  Transfer time	6 ms typical : 10 ms maximum
  Conformance
  Product certifications	CE
  Standards	EN/IEC 62040-1:2019/A11:2021
  	EN/IEC 62040-2:2006/AC:2006
  	EN/IEC 62040-2:2018
  Environmental
  Ambient air temperature (operation)	0…40 °C
  Relative humidity	0…90 %
  Operating altitude	0…6667 ft
  Ambient air temperature (storage)	-20…50 °C
  Storage Relative Humidity	0…90 %
  Storage altitude	0.00…15240.00 m
  Acoustic level	40 dBA
  IP degree of protection	IP20
  Communications & Management
  Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
  Surge Protection and Filtering
  Surge energy rate	156 J
  Packing Units
  Unit Type of Package 1	PCE
  Number of Units in Package 1	1
  Package 1 Height	23.7 cm
  Package 1 Width	37.3 cm
  Package 1 Length	14.3 cm
  Package 1 Weight	4.8 kg
  SCC14	10731304338304
  Contractual warranty	2 years repair or replace

• Description	Downloads
  BV650I:Datasheet	Download
  BV650I:User Guide	Download
