Antec AX20 Black Tempered Glass Mid-Tower ATX PC Case – 0-761345-10060-1
- Description
- Specifications
- Downloads
-

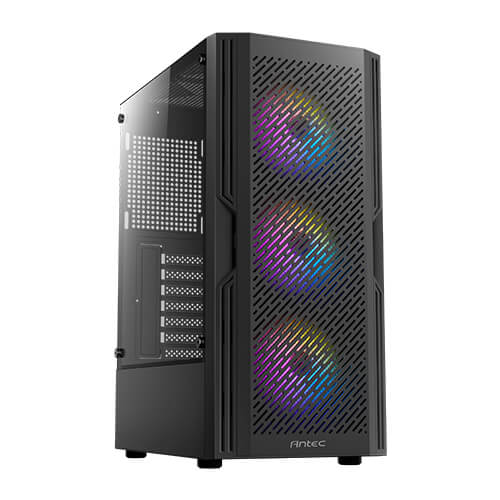

Antec AX20 Black Tempered Glass Mid-Tower ATX PC Case
Unique Design & Powerful Heat Dissipation
AX20 features a slanted bar air intake design and an exceptional dense mesh for massive heat dissipation. The half-view tempered glass side panel design allows you to show off your gaming configurations without obstacles. The AX20 supports up to 8 x 120 mm fans simultaneously and provides users with diverse cooling options.Slanted Bar Air Intake Design

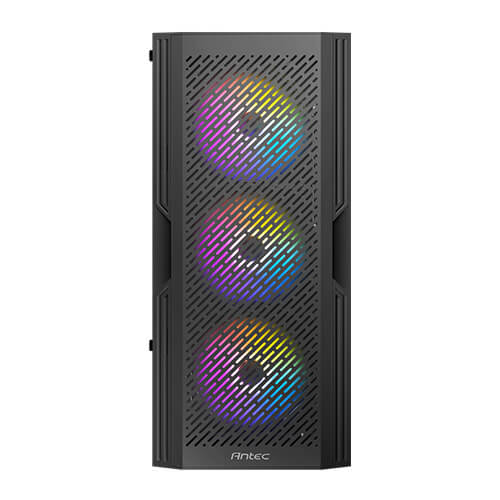

Featuring dense mesh for massive airflow and efficient dust prevention.High-Airflow Front Panel
Massive air intake at the front, top,
and bottom. Creating multiple airflow paths. -
Main Spec Dimensions 358 x 207 x 451mm (DWH) Form Factor Mid Tower Materials Steel+Plastic Mainboard Support ATX, Micro-ATX, ITX Front Access & Controls Power, Reset, 2 x USB 2.0, 1 X USB 3.0, MIC / HD-AUDIO Side Panel Tempered glass Drive Bays Expansion Slots 7 3.5″ /2.5″ 2 / 1 2.5″ 2 Fan Support Front 3 x 120mm / 2 x 140mm Top 2 x 120mm Power supply 2 x 120mm Rear 1 x 120mm Included Fan(s) 3 x 120 RGB fixed model fans in front (AX20) 3 x 120 RGB fixed mode fans in front + 1 x 120 RGB fixed mode fan in rear (AX20 Elite) Radiator Support Front 120 / 140 / 240 / 280mm Clearance Max GPU Length ≤ 270mm Max CPU Cooler Height ≤ 155mm Max PSU Length ≤ 170mm(with HDD) ≤ 295mm(without HDD) Miscellaneous Dust Filter Front Net Weight 4 Kg (AX20) / 4.12 Kg (AX20 Elite) Gross Weight 4.71 Kg (AX20) / 4.83 Kg (AX20 Elite) Warranty 1 year UPC# 0-761345-10060-1 (AX20) 0-761345-10066-3 (AX20 Elite) -
Description Downloads 0-761345-10060-1Manual.pdf Download
