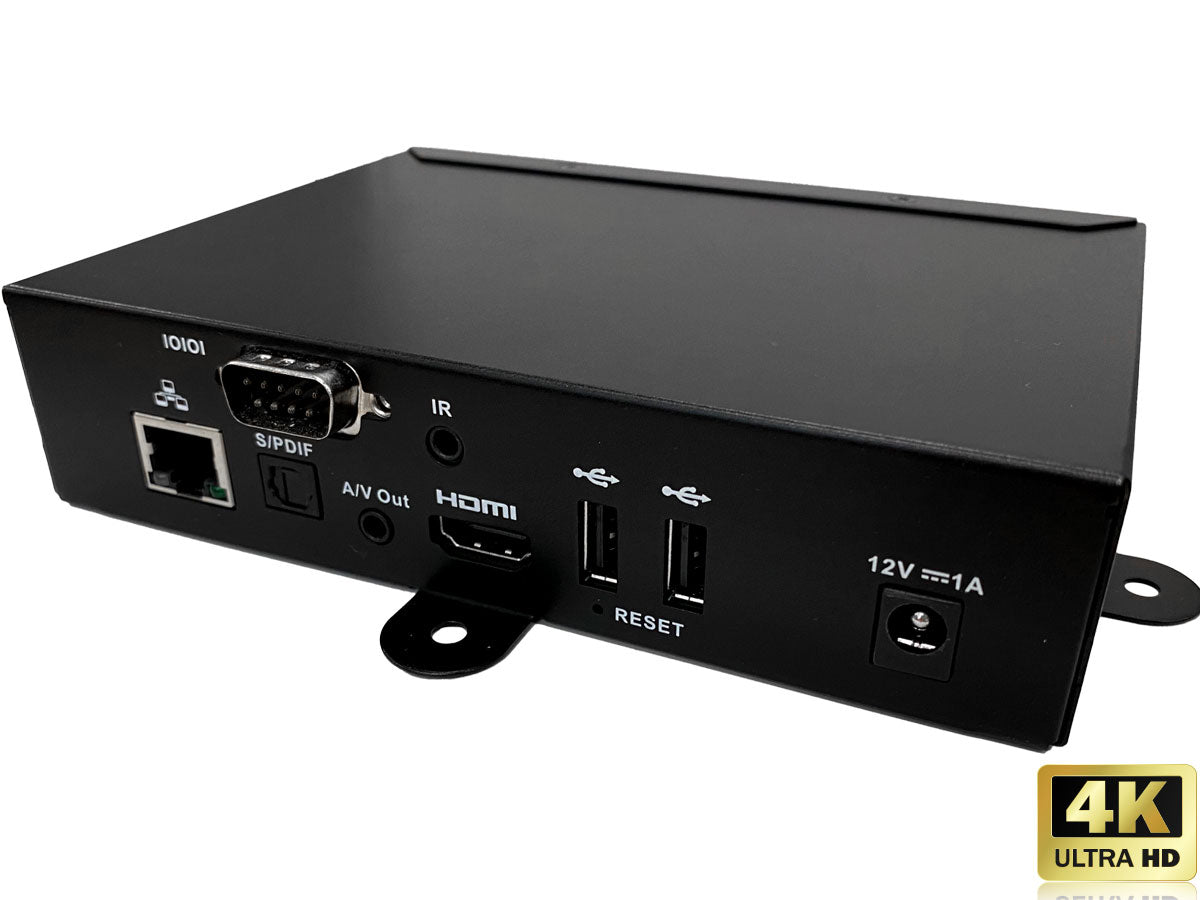

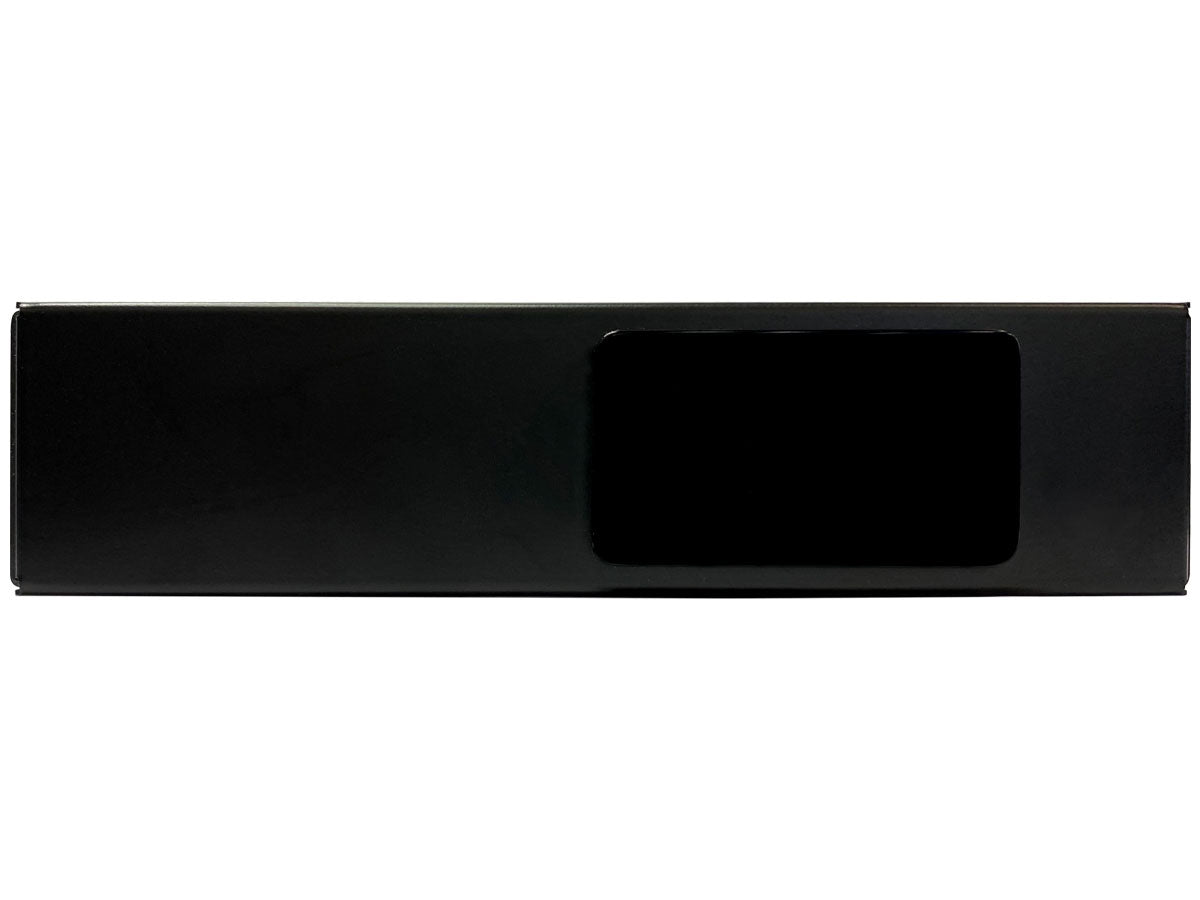

Amino H200 4K Digital Signage Player

• Description
• Specifications

• Amino H200 4K Digital Signage Player


  The H200 is designed for “out of sight” operation to deliver content across a diverse range of environments – from in-room hospitality through public space signage and advertising applications where demand for 4K-based services is growing rapidly.

  Sector-specific features include a Power over Ethernet (PoE) capability for single-cable installation that reduces installation time and cost. A serial display port, IR extender port and VESA mounting all support out-of-sight operation, easy installation, and promote a simplified user experience.

  In a rugged case, the device combines a high performance AV1 and HEVC capability processor with graphics acceleration for fast rendering of high quality graphics. HEVC capability enables the delivery of high quality images in areas where bandwidth or physical head-end storage needs to be optimised.

• Category	Specification
  Key Features	AV1/HEVC 4Kp60 for high-quality visuals
  	Tamper-proof, ruggedized chassis
  	Power-over-Ethernet (PoE)
  	Integrated mounting brackets (VESA)
  	Out-of-sight operation support
  	IR extender port for remote control
  Processing	CPU: 21.8K DMIPs
  	RAM: 2GB (4GB option)
  	Flash: 8GB eMMC (32GB option)
  Video & Audio Formats	Resolution: Up to 2160p60 (4K HDR10+)
  	Audio: Dolby Digital, HE-AAC
  	Video Codecs: AV1, HEVC, AVC, MPEG-2
  	IP Streaming: RTSP, HLS, SRT, DASH
  Interfaces	HDMI 2.1, CVBS + L/R Audio
  	Ethernet: 10/100/1000
  	USB: 2x USB 2.0
  	Digital Audio: Optical S/PDIF
  	Serial Port: RS232/TVI
  	Remote Control: IR 36KHz, IR Extender
  Software	JavaScript SDK for Web Apps
  	REST API for Device Management
  	Compatible with Orchestrate CMS
  Physical Properties	Size: 158mm x 121mm x 38mm
  	Weight: 0.5 kg
  	Mounting: VESA brackets included
  Compliance	FCC, CE, CB, UKCA, ROHS Compliant
