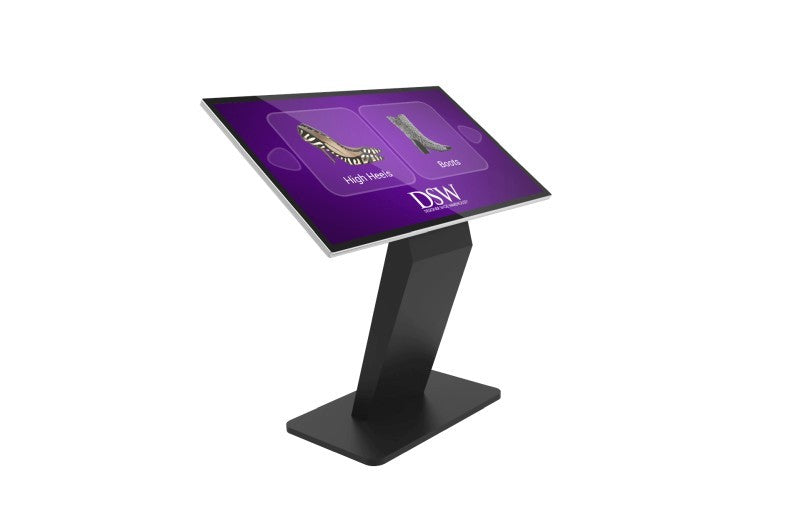

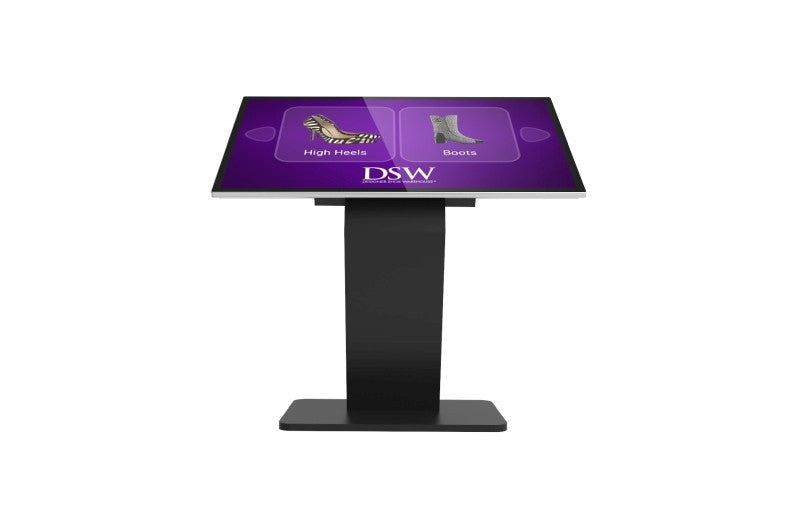

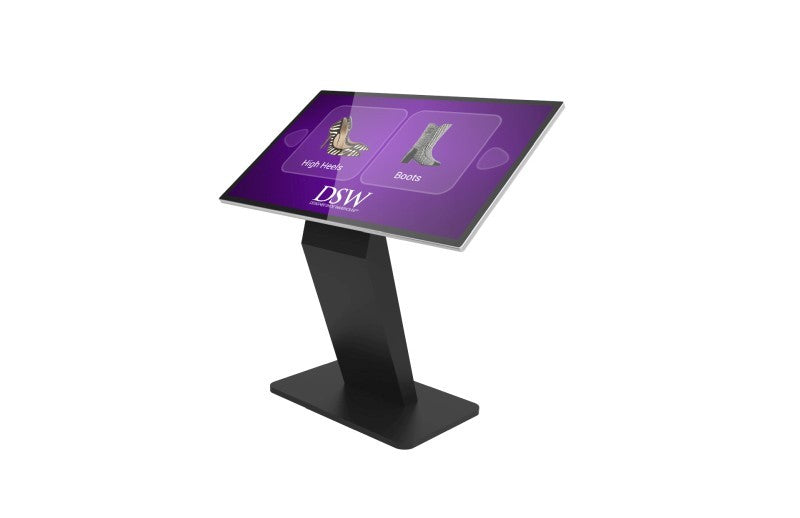

• Allsee TWP50B – 50″ Windows PCAP Touchscreen Kiosks

  Commercial All-in-One Touch Kiosk Solution with Integrated PC and Internal Locker
  WINDOWS PCAP TOUCH SCREEN KIOSKS
  (43″-55″)
  Fully integrated kiosk solution featuring rear ports and connections for use with built-in or third party PC


  All-in-One Touch Kiosk
  This all-in-one interactive display combines the best in PCAP Touch Screen technology with a stylish and secure kiosk. The screen resembles a giant tablet with the edge to edge glass tempered front and aluminium bezel. Designed for use in commercial applications the easy to use ergonomic design allows users to interact with the screen perfectly.

  PCAP Touch
  State of the art Projected Capacitive interactive technology offers the most responsive touch experience available while featuring sleek edge-to-edge glass. Designed for commercial applications, PCAP touch technology works by fixing a sensor grid between a layer of cover glass and the LCD panel, when a finger touches the glass the grid detects the coordinates of the touch point. Unlike other touch technologies PCAP is not affected by dust or debris on the screen surface. Our screens boast 10 touch points, allowing for smart phone-like touch gestures and multiple users, as well as offering superior optical quality.

  Surface Plasma Treatment
  Not only is the front glass face tempered, which makes it more durable and suitable for public use, but it is also plasma treated to give it an oleophobic coating. What this means is that it is more resistant to surface oil and moisture which Reduces the residue left by fingerprints. It also lowers the surface tension and friction, making touch gestures much smoother, improving the overall tactile experience for the user. All this is achieved without having an etched finish which means that the overall optical clarity is maintained to the maximum level.




  IPS Panel
  Accurately displays image quality and colour depth at a 178° ultra wide viewing angle. There is no fall-off in colour accuracy and no diversion in contrast ratio at wide angles. From bright sunlight to the most challenging lighting environments these displays are designed to reproduce and maintain the ultimate colour temperature for lifelike images. The panel is also optimised for mounting in either landscape or portrait orientation.

  LED Backlight
  The LED backlight used is not only eco-friendly but also ensures the display has enhanced brightness and contrast. This technology increases the lifespan and reduces the power consumption by around 30%. This form of light technology is mercury free; safeguarding this screen’s eco friendliness.

  24/7 Usage
  Built with commercial grade panel and components these displays are designed to run 24/7 in constant use; unlike domestic tablets. The panel also has a lifespan of over 70,000 hours of continuous use.

  Rear Connectivity
  Once your kiosk is in place you can use the ports on the rear of the base to conveniently connect your USB, Ethernet cable, power cable or Wi-Fi aerial direct to the Touch Screen. The rear connections work whether you are using the built in PC or a third party device inside the internal locker.

  Touch CMS
  Take advantage of our ground breaking Touch Screen Content Management System that puts you in control as you create and deploy your very own interactive content. First, you create your custom layouts with our user friendly software that requires no knowledge of coding to use. Then deploy the content from your PC direct to your Touch Screens in a matter of seconds. Then you can let the content do the talking for your brand, company, service or product.

• Category	Attribute	Value
  Display	Resolution	1920×1080
  	Display Area	1072.8×603 mm
  	Brightness (cd/m²)	450
  	Aspect Ratio	16:9
  	Viewing Angle	178°
  	Contrast Ratio	5000:1
  	Colour	16.7M
  Touch	Technology	Projected Capacitive
  	Touch Points	10
  	Interface	USB (for touch)
  	Glass Hardness	7H minimum
  Dimensions	Unit Size	1135.2×1344.8×502.2 mm
  	Footprint	800×500 mm
  	Package Box 1	1270x875x200 mm
  	Package Box 2	1000x690x430 mm
  Weight	Net Weight	76.25 kg
  	Gross Weight	Box 1: 33.6 kg / Box 2: 52.15 kg
  Power	Consumption	75 W
  	Input Voltage	AC110240V (50Hz60Hz)
  AV Inputs	Video Input	HDMI, VGA
  	Audio Input	3.5mm Audio Socket
  	Speaker Type	2W, 4Ω (x2)
  Environmental	Operating Temp	0°C to 50°C
  	Storage Temp	-30°C to 60°C
  	Operating Humidity	10% to 80%
  	Storage Humidity	5% to 95%
  Computer	CPU	Quad-Core ARM Cortex A17, 1.6GHz
  	GPU	Quad-Core ARM Mali-T764
  	RAM	DDR3 2GB
  	Internal Storage	8GB eMMC
  	Graphic Engine	OpenGL ES, OpenCL, Direct3D 11.1
  	USB	1x USB (OTG/HOST), 1x USB (HOST)
  	LAN	100M/1000M Ethernet
  	Wi-Fi	802.11b/g/n/ac
  	OS	Windows
  Other	Controls	No accessible buttons
  Accessories	Included	Remote, Manual, USB Cable, Power Cable, Wi-Fi Aerial

• Warranty

  3-year warranty.
  All standard product ranges come with a 3 year warranty starting from date of invoice.

  Any warranty extension needs to be completed at point of order and should be clearly noted on the sales invoice.

  Covers hardware failure but excludes accidental damage or user error.

  All screen sizes up to and including 55”, as well as media players, are covered by a swap-out warranty. There may be some situations (such as not having a particular model in stock) where an advanced replacement product cannot be supplied, in these cases a collection, repair and return service will be implemented. Screens larger than 55” and freestanding models (“L” and “OT” ranges only, excluding “LUHB”, “LHDS”, “TAO”, “AB” and “OAB” ranges) are covered by an on-site service.

• Description	Downloads
  Allsee TWP50B – 50″ Windows PCAP Touchscreen Kiosks Spec Sheet	Downloads
  PCAP Touch Screen with Dual OS – User Manual	Downloads
  PCAP Touch Screen Kiosk – Assembly Guide	Downloads
  Touch CMS User Manual	Downloads
  Allsee TWP50B – 50″ Windows PCAP Touchscreen Kiosks Technical Drawing	Downloads
  Touch Screen Digital Signage User Manual	Downloads
  RS-232 Control	Downloads
  Allsee TWP50B – 50″ Windows PCAP Touchscreen Kiosks Images	Downloads
