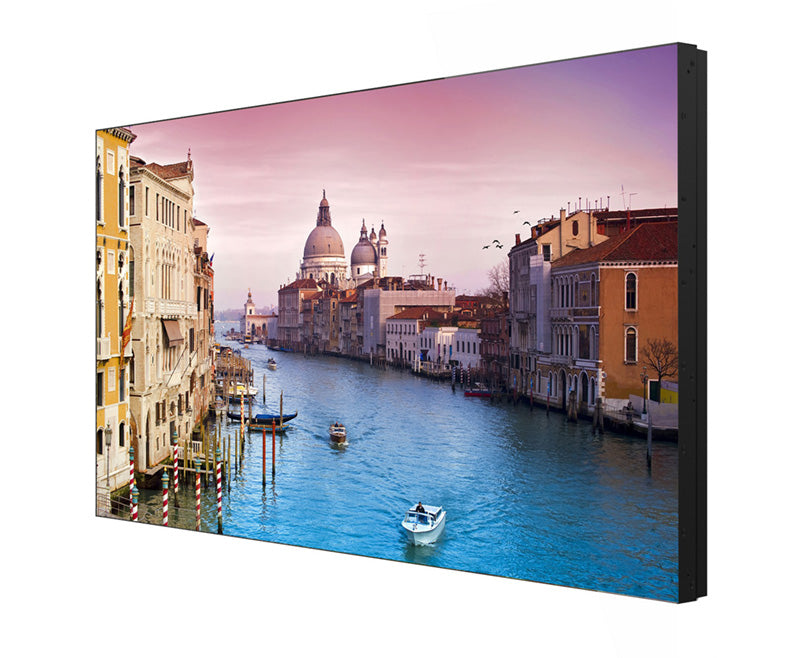

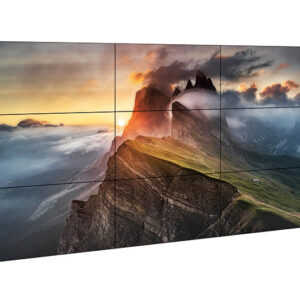

Allsee TL55N1 – 55″ Narrow Bezel LCD Videowall Display | 1.8mm Bezel to Bezel
Go big using our 4K compatible video wall panels, with automatic tiling to fill any space

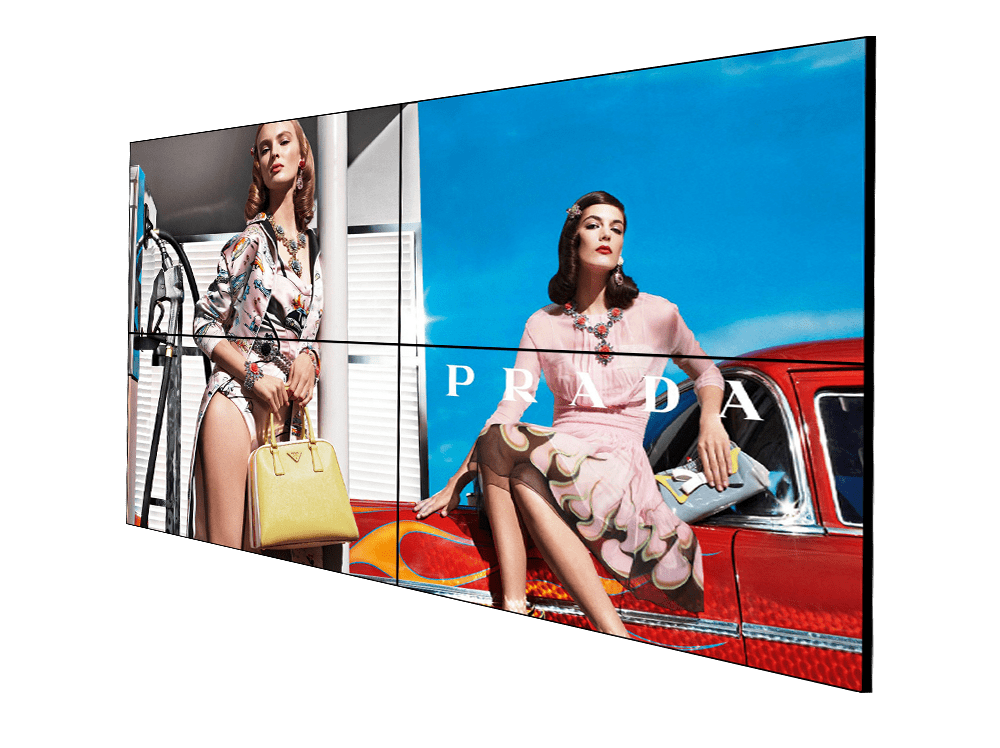

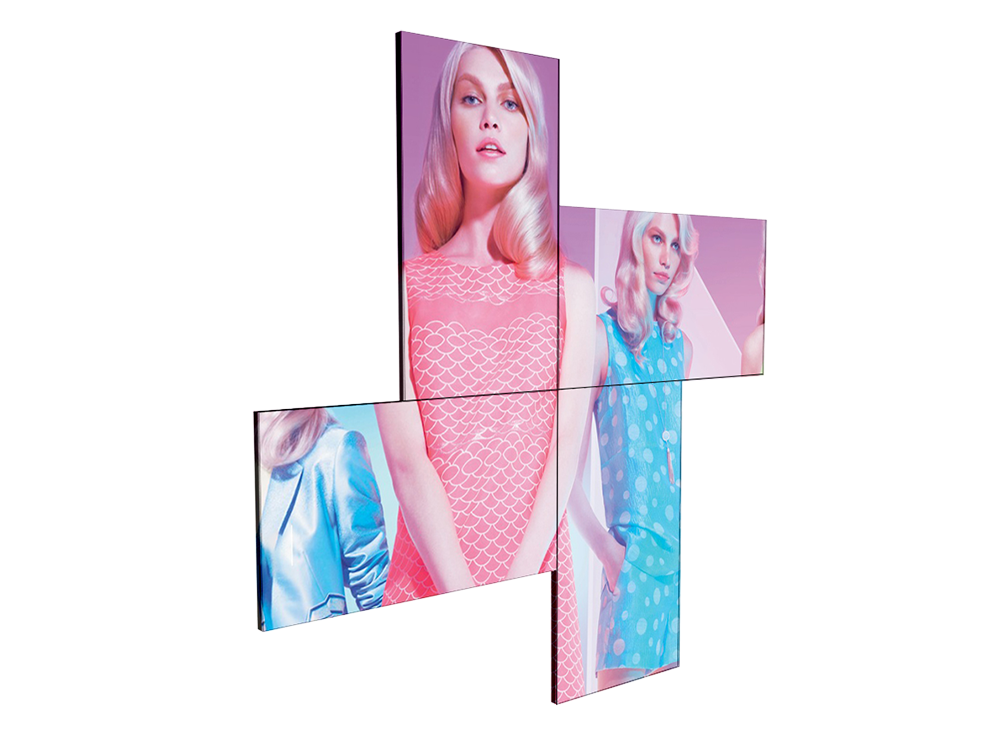

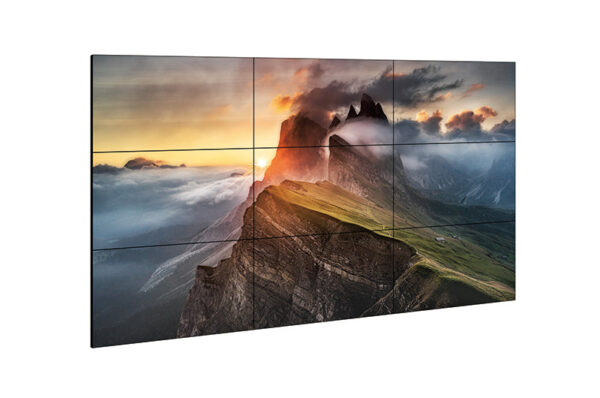

Seamless Video Wall
With a total screen-to-screen bezel size of 1.8mm our LCD video walls provide a virtually seamless display, creating an eye catching and content-focused experience. Their super narrow bezel allows you to build video walls of any size.
4K Daisy Chain Tiling
These LCD Video Walls feature DisplayPort in and outputs, allowing you to daisy chain up to a 4K signal once connected. The integrated matrix processor significantly cuts the cost of external hardware, installation and maintenance, providing a cost-effective solution while still maximizing video quality with an immersive viewing experience.
4K Compatible Video Walls
With large video walls, content resolution is very important. If you have a 4K source you can achieve stunning Ultra High Definition resolution across your video wall configuration without having to purchase an external matrix controller.
500cd/m² IPS Panel
Commercial grade IPS technology accurately displays image quality and colour depth with no fall-off in colour accuracy. These LCD Video Walls are designed to achieve ultimate lifelike colour temperature when used in either landscape or portrait.
Multiple Inputs
Featuring HDMI and DisplayPort inputs, these displays are ideal whether the screens are being used individually, as part of a video wall using the internal video matrix processor or being run from an external matrix controller.
Eco Friendly Display
Designed to perform at high quality levels while operating at a lower energy usage, these displays feature LED backlight technology that reduces power consumption by around 30%. They also feature an eco-friendly power timer that recognises your input signal so they automatically power off and on and are only in use when needed.
Smart Temperature Control
A fanless cooling system keeps their panels and other internal components at the optimum working temperature; ensuring a long and reliable life for your LCD Video Walls.
Optional Network Upgrade
You can add our Cloud Network Media Player, allowing you to connect your LCD Video Wall via Wi-Fi, LAN or 4G, and then remotely update it over the internet. -
Category Attribute Value Display Resolution 1920×1080 Display Area 1209.6×680.4 mm Brightness (cd/m²) 500 Contrast Ratio 1,000:1 Aspect Ratio 16:9 Colour 16.7M Viewing Angle 178° Backlight Life 70,000 Hours Bezel Size B2B (Panel to Panel) 1.8 mm A2A (Active Area to Active Area) 2.6 mm Dimensions Unit Size 1212.2x683x122.6 mm Package Size 1385x858x348 mm VESA Holes 600×400 M6 Weight Net Weight 22.95 kg Gross Weight 26.40 kg Power Consumption <200 W Input Voltage 100V ~ 240V (50/60Hz) Power Management VESA DPMS Connectivity Inputs DisplayPort In, HDMI In x2 Outputs DisplayPort Out External Controls RS-232 In/Out, RJ45, IR-In Environmental Operating Temp 0°C to 40°C Operating Humidity 20% to 80% Working Pressure 800–1114 hPa (0–2,000m altitude) Accessories Included DP Cable, LAN, IR, Remote, Power, Manual Optional Media Player, Touch Frame -
