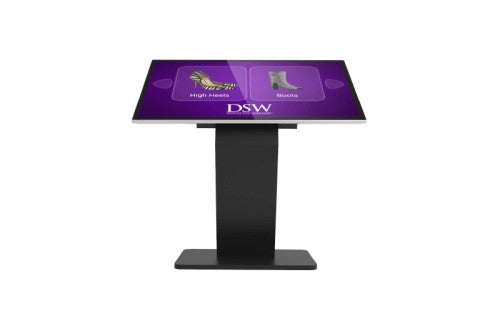

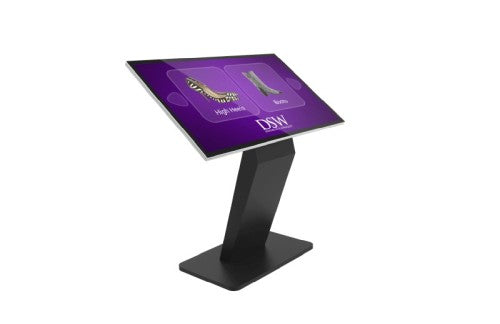

Allsee TAO43H – 43" Android PCAP Touchscreen Kiosks

Operating System	Clear

Allsee TAO43H – 43″ Android PCAP Touchscreen Kiosks

Description
Specifications
Warranty
Downloads

Allsee TAO43H – 43″ Android PCAP Touchscreen Kiosks

Commercial All-in-One Touch Kiosk Solution with Integrated PC and Internal Locker
ANDROID PCAP TOUCH SCREEN KIOSKS
(43″-55″)
Fully integrated kiosk solution featuring rear ports and connections for use with built-in or third party PC

All-in-One Touch Kiosk
This all-in-one interactive display combines the best in PCAP Touch Screen technology with a stylish and secure kiosk. The screen resembles a giant tablet with the edge to edge glass tempered front and aluminium bezel. Designed for use in commercial applications the easy to use ergonomic design allows users to interact with the screen perfectly. The striking design, along with the integrated Android media player, sets this solution apart from other touch screens on the market both in terms of functionality and aesthetics.

Integrated Android OS
This interactive kiosk comes with an integrated Android media player as standard. An integrated Windows OS versions is also available on request. For ultimate flexibility this kiosk also features an internal locker so that a third party media player or NUC PC can be used.

PCAP Touch
State of the art Projected Capacitive interactive technology offers the most responsive touch experience available while featuring sleek edge-to-edge glass. Designed for commercial applications, PCAP touch technology works by fixing a sensor grid between a layer of cover glass and the LCD panel, when a finger touches the glass the grid detects the coordinates of the touch point. Unlike other touch technologies PCAP is not affected by dust or debris on the screen surface. Our screens boast 10 touch points, allowing for smart phone-like touch gestures and multiple users, as well as offering superior optical quality.

Surface Plasma Treatment
Not only is the front glass face tempered, which makes it more durable and suitable for public use, but it is also plasma treated to give it an oleophobic coating. What this means is that it is more resistant to surface oil and moisture which Reduces the residue left by fingerprints. It also lowers the surface tension and friction, making touch gestures much smoother, improving the overall tactile experience for the user. All this is achieved without having an etched finish which means that the overall optical clarity is maintained to the maximum level.

Touch Monitor and Windows OS Versions
If your project does not require an integrated Android media player we can offer a budget-friendly monitor version, for use with a third party media player or NUC PC, or a model with integrated Windows OS.

IPS Panel
Accurately displays image quality and colour depth at a 178° ultra wide viewing angle. There is no fall-off in colour accuracy and no diversion in contrast ratio at wide angles. From bright sunlight to the most challenging lighting environments these displays are designed to reproduce and maintain the ultimate colour temperature for lifelike images. The panel is also optimised for mounting in either landscape or portrait orientation.

LED Backlight
The LED backlight used is not only eco-friendly but also ensures the display has enhanced brightness and contrast. This technology increases the lifespan and reduces the power consumption by around 30%. This form of light technology is mercury free; safeguarding this screen’s eco friendliness.

24/7 Usage
Built with commercial grade panel and components these displays are designed to run 24/7 in constant use; unlike domestic tablets. The panel also has a lifespan of over 70,000 hours of continuous use.

Rear Connectivity
Once your kiosk is in place you can use the ports on the rear of the base to conveniently connect your USB, Ethernet cable, power cable or Wi-Fi aerial direct to the Touch Screen. The rear connections work whether you are using the built in PC or a third party device inside the internal locker.

Touch CMS
Take advantage of our ground breaking Touch Screen Content Management System that puts you in control as you create and deploy your very own interactive content. First, you create your custom layouts with our user friendly software that requires no knowledge of coding to use. Then deploy the content from your PC direct to your Touch Screens in a matter of seconds. Then you can let the content do the talking for your brand, company, service or product.

Category	Details
43 Inch – TAO43H
Display Area (mm)	941.2×529.4
Unit Size (mm)	997.6×1248.3×442.1
Power Consumption (w)	65
Net Weight	66.05kg
Gross Weight	Box 1: 20.75Kg
	Box 2: 52.15Kg
Package Size (mm)	Box 1: 1095x690x170
	Box 2: 1000x690x430
Panel/Mechanical
Resolution	1920×1080
Aspect Ratio	16:9
Brightness (cd/m²)	450
Viewing Angle	178°
Contrast Ratio	5000:1
Colour	16.7M
Footprint	800×500
Touch
Touch Technology	Projected Capacitive
Touch Points	10
Glass Hardness	7H minimum
AV Inputs/Audio
Inputs (when used as monitor)	HDMI, VGA
Audio Input (when used as monitor)	Audio Socket (3.5mm)
Speaker Type	2W, 4Ω (x2)
Power
Input Voltage	AC110~~240V (50Hz~~60Hz)
Environmental
Operating Temperature	0°C to 50°C
Storage Temperature	-30°C to 60°C
Operating Humidity	10% to 80%
Storage Humidity	5% to 95%
Computer
CPU	Quad-Core ARM Cortex A17, 1.6GHz
GPU	Quad-Core ARM Mali-T764
RAM	DDR3 2GB
Instruction Set	8GB eMMC
Graphic Engine	OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1
Internal Storage	8GB eMMC
USB	1 x USB (OTG/HOST), 1 x USB (HOST)
LAN	100M/1000M Ethernet
Wi-Fi	802.11b/g/n/ac
OS	Android 7.1
Other	No accessible buttons or controls
Accessories Included	Remote Control, User Manual, Power Cable, USB to USB Cable, Wi-Fi Aerial

Warranty

3-year warranty.
All standard product ranges come with a 3 year warranty starting from date of invoice. This excludes Electronic Shelf Label (ESL) products which come with a 2 year warranty. This also excludes all bespoke hardware which is manufactured under OEM.

Any warranty extension needs to be completed at point of order and should be clearly noted on the sales invoice.

Covers hardware failure but excludes accidental damage or user error.

All screen sizes up to and including 55”, as well as media players, are covered by a swap-out warranty. There may be some situations (such as not having a particular model in stock) where an advanced replacement product cannot be supplied, in these cases a collection, repair and return service will be implemented. Screens larger than 55” and freestanding models (“L” and “OT” ranges only, excluding “LUHB”, “LHDS”, “TAO”, “AB” and “OAB” ranges) are covered by an on-site service.

Free lifetime telephone and email technical support.

Android PCAP Touch Screen Kiosks – Spec Sheet	Download Link
43″ Android PCAP Touch Screen Kiosks – Spec Sheet	Download

Windows PCAP Touch Screen Kiosks – Spec Sheet	Download Link
43″ Windows PCAP Touch Screen Kiosks – Spec Sheet	Download

Android PCAP Touch Screen Kiosks – Technical Drawings	Download Link
43″ Android PCAP Touch Screen Kiosks – Technical Drawing	Download

Windows PCAP Touch Screen Kiosks – Technical Drawings	Download Link
43″ Windows PCAP Touch Screen Kiosks – Technical Drawing	Download

User Manual	Download Link
PCAP Touch Screen with Dual OS – User Manual	Download
PCAP Touch Screen Kiosk – Assembly Guide	Download
Touch CMS User Manual	Download
Touch Screen Digital Signage User Manual	Download
RS-232 Control	Download
