Allsee PT86J – 86″ 4K Interactive Touch Display with MeetingPad Software
Modern Interactive Whiteboard
The stylish enclosure design really makes this touch screen stand out from the crowd. The bezels are so thin that the display area occupies more than 91% of the overall screen size. Designed with aluminium bezels and a moulded polymer rear, the screen is so lightweight it can even be mounted on a stud wall.
4K Display
The 4K Ultra HD display delivers incredible image quality with four times resolution higher than Full HD. Optimised for viewing distances both near and far the display allows your content to take center stage for all your visual communication.

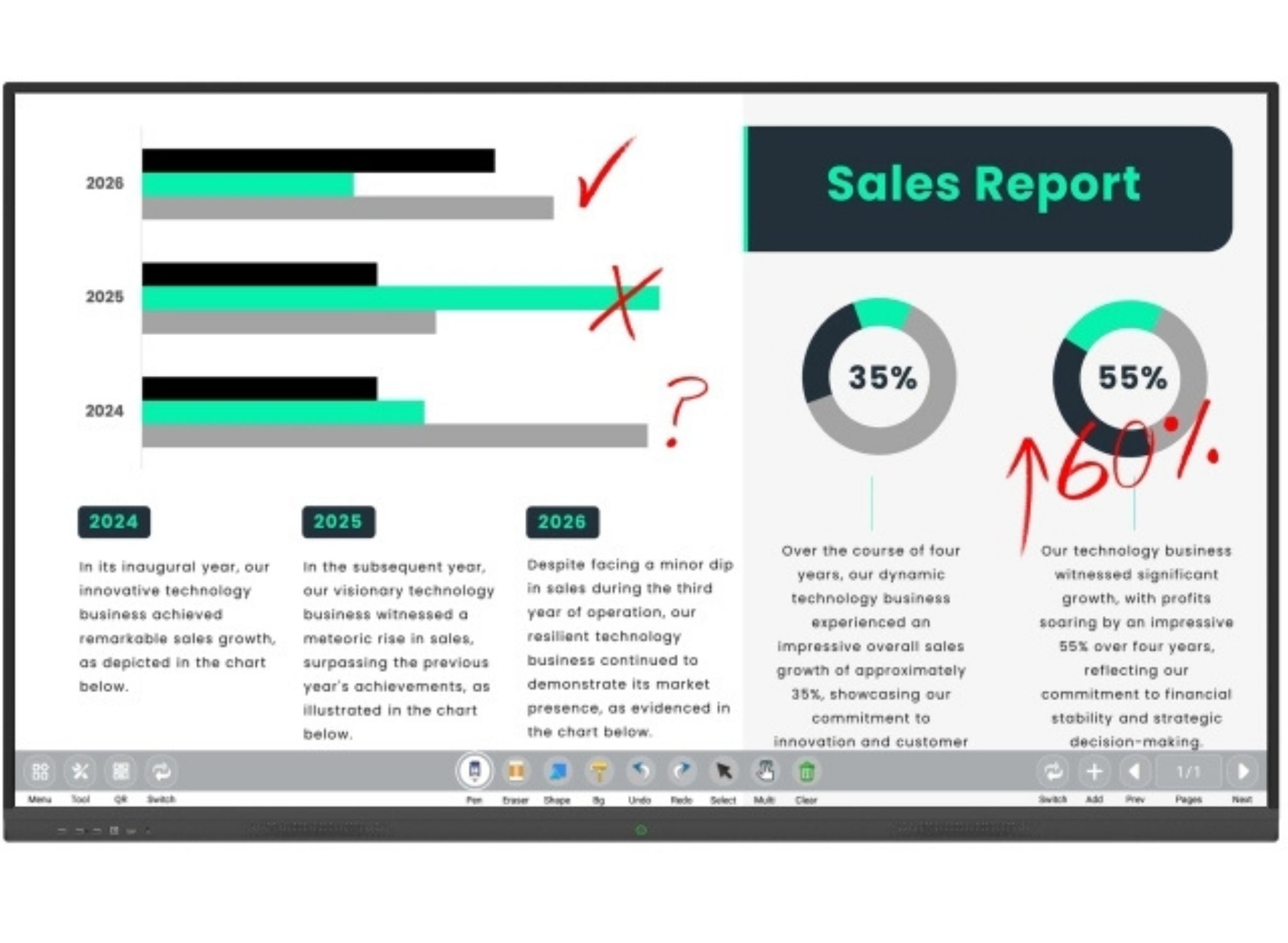

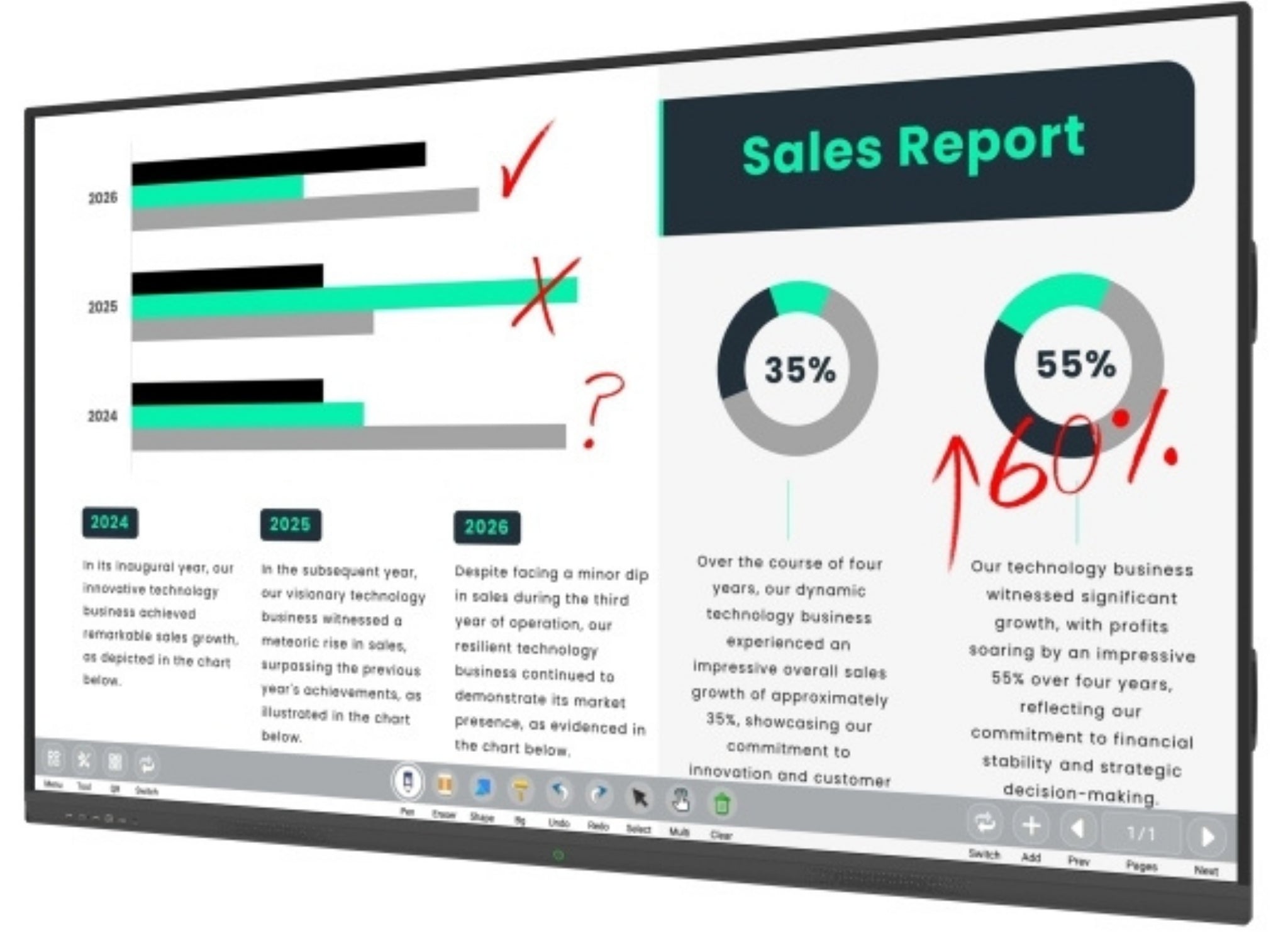

Introducing MEETINGPAD: The Ultimate Collaboration Tool
State of the art ‘MeetingPad’ Software brings the 4K Slim Bezel Interactive Touch Display to life. Annotate over office documents, PDFs, images and videos using the internal Android system, you can even annotate on the display of an external input such as a laptop. Wirelessly mirror and file share between your devices and the screen with no additional hardware required. The wireless features are all compatible with Android, Apple and Windows devices and even allow you to annotate and control the screen from your device. There are no subscription or licence charges for this remarkable software.
Multi-Device Wireless Mirroring
Wirelessly project the displays of up to four smartphones, tablets, laptops, PCs or Macs. Using mobile devices you can mirror the display in both directions, and even take control of the touch screen. Mirroring via 5GHz allows for fast response, all without the need of external wires or transmitters.
Easy File Sharing
Once your device is connected you can quickly and easily share documents, videos, images and audio files stored on your smartphone, tablet, laptop or PC directly to the touch screen. You can also share files from the touch screen to your device via email or by scanning a QR code with your mobile or tablet.
Smart Pen Stylus
There are two stylish interactive ‘Smart Pens’ included. These special styluses allows you to control the display wirelessly from anywhere in the room. You can change the pen tool colour, save annotated documents, navigate through a PowerPoint presentation or website and go back to the ‘MeetingPad’ home screen.
Slim Bezel
The screens feature an extremely sleek and narrow bezel meaning that the enclosure to display area ratio is very low. Thefront is crafted from segmented aluminium to achieve ultimate precession while the polymer rear keeps the display super slim and lightweight.
Optional Windows OPS PC
We offer two versions of the slot-in OPS Windows PC; one high performance and one more budget friendly. By using a slot-in OPS PC you can have both Android and Windows built in without needing to connect any external devices.
20 Touch Points
Ideal for large group collaboration, up to twenty users can interact with the screen simultaneously when working on group projects.
Easy Access Ports and Controls
As well as having a power and standby button there are also two front facing USB ports. These are ideal for quickly and conveniently connecting USB sticks containing files that you need to access from MeetingPad or the optional OPS PC.
Etched Glass
Improves tactility for smoother touch gestures, especially useful when there is more than one user touching the screen. The anti-glare nano coating also diffuses external light so that images and videos are much clearer.
Integrated Speakers
The screens have two integrated super slim 20W speakers for presentations that include an audio element.
Connectivity
As well as using the built in Android system these displays can also be used as a touch screen monitor by connecting a PC or laptop via HDMI and USB. -
Specifications Details Display Display Area 1892.2 x 1064.2 mm Unit Size 1954.4 x 1165.2 x 89.1 mm VESA Holes 800 x 400 mm Net Weight 66 kg Gross Weight 83 kg Power Consumption 350W Panel Resolution 3840 x 2160 Aspect Ratio 16:9 Brightness 500 cd/m² Colour 1.07 Billion Viewing Angle 178° Contrast Ratio 4000:1 Lifespan 80,000 Hours Touch Touch Technology Infrared Touch Points 20 (10 in MeetingPad) Glass Thickness 4 mm Response Time ≤8 ms Touch Point Accuracy ±2 mm AV Ports Front Inputs USB x3, HDMI-In, Touch USB, USB Type-C Rear Inputs HDMI-In x2, USB 2.0 x1, USB 3.0 x1, Touch USB, VGA, VGA Audio In, AV In, AV Out, YPbPr, RS232, RJ45, Earphone, SPDIF Audio Speaker Type 2 x 20W Environmental Operating Temperature -10°C to 50°C Storage Temperature -20°C to 60°C Operating Humidity 10% to 90% Storage Humidity 10% to 90% Computer CPU Quad-core ARM Cortex-A55 RAM 4 GB Graphic Engine Mali-G52 MP2 (2EE) Hard Drive/Internal Memory 32 GB USB USB 2.0 x2 LAN 10/100 Ethernet Wi-Fi 2.4G/5G OS Android 11 Accessories Included Package Contents User Manual (CD), Remote Control, Power Cable, 3m LAN Cable, 3m USB A Male to USB B Male Cable, 3m HDMI Cable, Wi-Fi Aerial (x3), Pointer, Magnetic Whiteboard Pen (x2), Smart Pen (x1), Batteries x2 Optional Accessories Floor Stand/Trolley, Ceiling Mount, PushShare Dongle -
Description Downloads 86″ 4K Slim Bezel Interactive Touch Display – Business Spec Sheet Downloads 86″ 4K Slim Bezel Interactive Touch Display – Education Spec Sheet Downloads 86″ 4K Slim Bezel Interactive Touch Display – Technical Drawing Downloads 4K Slim Bezel Interactive Touch Display – User Manual Downloads Economical OPS Slot-in PC Intel® Celeron – Spec Sheet Downloads Premium OPS Slot-in PC Intel® Core™ i5 – Spec Sheet Downloads
