• Allsee OW55F – 55″ Wall-Mounted Outdoor Digital Advertising Display

  IP Rated Ultra High Brightness Digital Signage Solution
  OUTDOOR DIGITAL ADVERTISING DISPLAYS
  (22″-65″) Larger sizes available on request
  Fully integrated stunning tablet-style displays; perfect for any weather conditions

  Direct Sunlight Readable
  Thanks to their commercial grade ultra-high brightness panels (2,500cd/m²), these displays are up to 10 times brighter than a domestic TV and so are easily readable even in direct sunlight.

  Weatherproof
  Designed to withstand the elements, these displays are protected against all wet weather conditions and airborne dust particles by their robust IP65 rated enclosure. They also feature a waterproof coating on all internal circuit boards and waterproof over-moulded AV connectors.

  Vandal Proof
  With a mild steel enclosure and thermally-toughened glass front, these IK10 rated displays are designed to withstand any damage that may occur in public spaces. To avoid tampering, controls and inputs are hidden and cannot be accessed by passers-by.

  Advanced Temperature Control System
  To maximise the lifespan of the display, the internal airflow system keeps the screen running at the optimal temperature regardless of the external conditions. Built-in air conditioning can be tailored to allow the display to work in any climate.

  Anti Reflective Glass
  The front glass face is specially treated to help diffuse direct sunlight, making the display easily readable even in bright weather conditions.

  Plug and Play
  Plug and Play is the most straightforward way to upload content to the screen. Simply load images and videos onto a USB, insert into the display, wait for your content to copy over, then remove. Your images and videos will now play in a continuous loop.

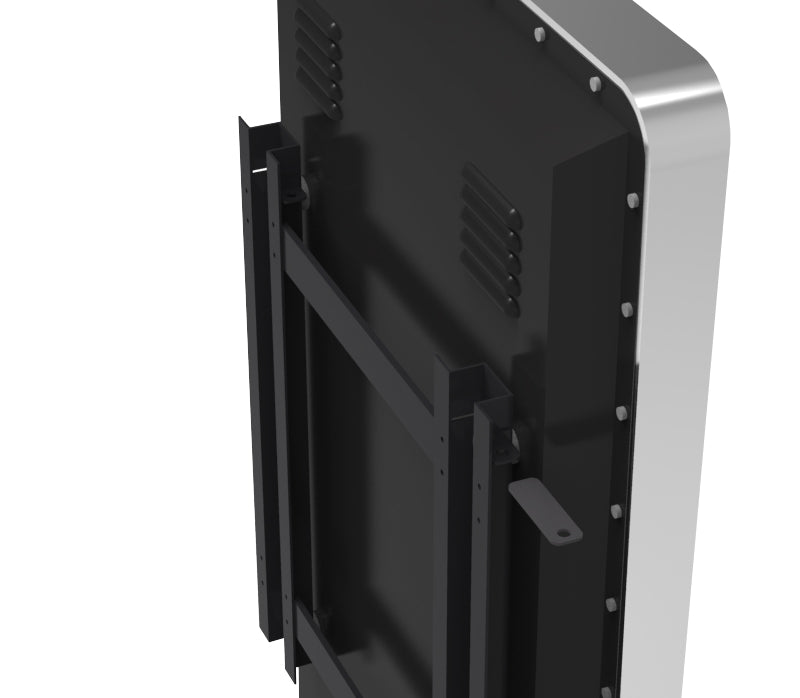

  Free Lockable Wall Mount
  To ensure that this a complete turnkey solution, a lockable wall mount is included at no extra cost, allowing you to securely mount your screen in either landscape or portrait orientation.

  Optional Network Upgrade
  For a small charge, you can upgrade your screen to be networked. This will allow you to connect your screen via Wi-Fi, LAN or 4G, and then remotely update it over the internet.

  Internal Locker
  Should you need run the screen from an external source, there is space to fit a small PC or media player inside the lockable compartment. This can then be connected to the display via the HDMI, VGA or 3.5mm audio inputs.

  Customisation Available
  Bespoke displays can be manufactured to order should you require a non-standard solution, to incorporate a camera or touch screen upgrade for example. We can also modify existing models to add a 4G module for mobile connectivity or a vinyl logo/wrap.

• Category	Attribute	Value
  Model		OW55F
  Display Area	mm	1215×686
  Unit Size	mm	1638x817x140
  Package Size	mm	1780x1050x300
  Resolution	px	3840×2610
  Brightness	cd/m²	2,500
  Colour		1.073G
  VESA (Landscape)	mm	800×600
  VESA (Portrait)	mm	600×800
  Net Weight		95kg
  Gross Weight		115.5kg
  Power Consumption	W	450
  Aspect Ratio		16:9
  Viewing Angle		178°
  Video Inputs		HDMI, VGA
  Input Voltage		AC110240V (50Hz60Hz)
  IP Rating		IP65
  Impact Protection		IK10
  Operating Temp		-20°C to 50°C
  Operating Humidity		10% – 80%
  Storage Temp		-30°C to 60°C
  Storage Humidity		5% – 90%
  Media Formats		MPG, AVI, MP4, etc.
  Media Resolution		3840×2160 / 2160×3840
  Internal Storage		32GB
  CPU		Rockchip RK3399 @1.8GHz
  GPU		Mali-T860 MP4 @600MHz
  RAM		4GB DDR3
  USB		USB2.0 x2, USB3.0 x2
  LAN		10/100M (Network ver.)
  Wi-Fi		802.11b/g/n/ac (Network ver.)
  OS		Android 10
  Included Accessories		AC Cable, Remote, Wall Mount
  Optional Accessories		Touch Upgrade, Network, Camera

• Warranty

  3-year warranty.
  All standard product ranges come with a 3 year warranty starting from date of invoice.

  Any warranty extension needs to be completed at point of order and should be clearly noted on the sales invoice.

  Covers hardware failure but excludes accidental damage or user error.

  All screen sizes up to and including 55”, as well as media players, are covered by a swap-out warranty. There may be some situations (such as not having a particular model in stock) where an advanced replacement product cannot be supplied, in these cases a collection, repair and return service will be implemented. Screens larger than 55” and freestanding models (“L” and “OT” ranges only, excluding “LUHB”, “LHDS”, “TAO”, “AB” and “OAB” ranges) are covered by an on-site service.

• Spec Sheet – Advertising Display	Download Link
  Allsee OW55F – 55″ Wall-Mounted Outdoor Digital Advertising Display Spec Sheet	Download

  Technical Drawings	Download Link
  Allsee OW55F – 55″ Wall-Mounted Outdoor Digital Advertising Display Technical Drawing	Download

  User Manual	Download Link
  Outdoor Advertising Displays – User Manual	Download
  Outdoor Advertising Display – Installation Guide	Download

  Photos	Download Link
  Outdoor Advertising Displays – Application Images	Download
  Outdoor Advertising Displays – White Background Images	Download

  Signage Software	Download Link
  Advertising Playlist Editor	Download
