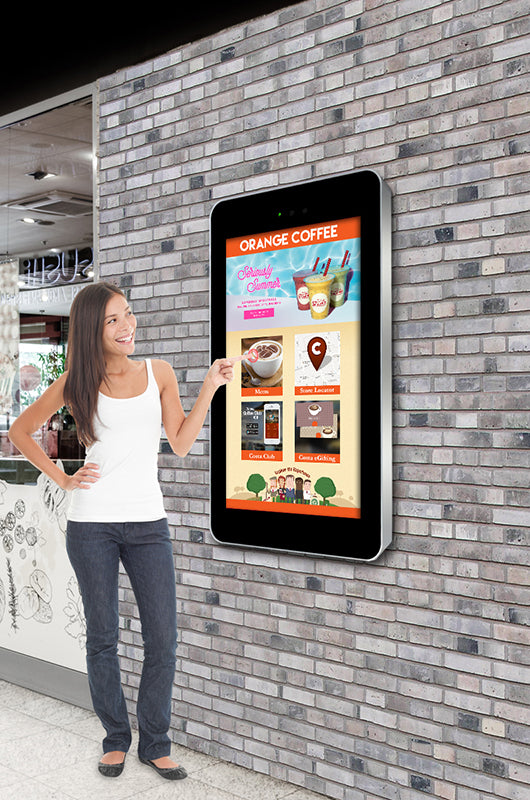

Allsee OW49D5-T2 – 49″ Wall-Mounted PCAP Outdoor Touch Screen
- Description
- Specifications
- Downloads
-
Allsee OW49D5-T2 – 49″ Wall-Mounted PCAP Outdoor Touch Screen
PCAP Touch Screen
State-of-the-art projected capacitive technology provides the most responsive and sensitive touch experience available, as well as offering superior optical quality. Unlike other touch technologies, PCAP is not affected by dust or debris on the surface of the screen
Weatherproof
Designed to withstand the elements, these displays are protected against all wet weather conditions and airborne dust particles by their robust IP65 rated enclosure. They also feature a waterproof coating on all internal circuit boards and waterproof over-moulded AV connectors.
Vandal Proof
With a mild steel enclosure and thermally-toughened glass front, these IK10 rated displays are designed to withstand any damage that may occur in public spaces. To avoid tampering, controls and inputs are hidden and cannot be accessed by passers-by.
Direct Sunlight Readable
Thanks to their commercial grade ultra-high brightness panels (2,000cd/m²), these displays are up to 10 times brighter than a domestic TV and so are easily readable even in direct sunlight.
No Ghost Touch
The electrodes that control the interactivity are sandwiched between two layers of special protective glass to prevent phantom touches. This ensures ultimate accuracy and a seamless touch experience.
Advanced Temperature Control System
To maximise the lifespan of the display, the internal airflow system keeps the screen running at the optimal temperature regardless of the external conditions. Built-in air conditioning can be tailored to allow the display to work in any climate.
Internal Locker
Should you need run the screen from an external source, there is space to fit a small PC or media player inside the lockable compartment. This can then be connected to the display via the HDMI, VGA or 3.5mm audio inputs.
Anti-Reflective Glass
The front glass face is specially treated to help diffuse direct sunlight, making the display easily readable even in bright weather conditions.
Ultimate UV Protection
The front glass of the display utilises a special UV treatment that reduces the internal heat of the enclosure by up to 71%; reducing the number of cooling fans needed and increasing the life of your display.
Customisation Available
Bespoke displays can be manufactured to order should you require a non-standard solution, to incorporate a camera for example. We can also modify existing models to add a 4G module for mobile connectivity or a vinyl logo/wrap. -
Category Details Panel Resolution 1920×1080 Display Area (mm) 1073×603 Aspect Ratio 16:9 Brightness (cd/m²) 2500 Colour 16.7M Viewing Angle 178° Contrast Ratio 8000:1 Touch Touch Technology Projected Capacitive Touch Points 10 Glass Hardness 4H Minimum AV Inputs Video Video Inputs HDMI, VGA Power Power Consumption (W) 300 Input Voltage AC110240V (50Hz60Hz) Mechanical Unit Size (WxHxD mm) 1500x746x140 Package Size (WxHxD mm) 1630x900x300 Landscape VESA Holes (mm) 800×500 Portrait VESA Holes (mm) 500×800 Net Weight (kg) 82 Gross Weight (kg) 101 IK Rating IK10 Environmental Operating Temperature -20°C to 50°C Operating Humidity 10% – 80% Storage Temperature -30°C to 60°C Storage Humidity 5% – 90% Enclosure Protection IP65 Computer Media Formats Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG) Media Resolution 1920×1080/1080×1920 Internal Memory 6GB CPU Quad-Core Cortex-A17 @ 1.61GHz GPU Mali-T760 MP4 @ 600MHz RAM 2GB DDR3 Internal Storage 8GB NAND USB USB2.0 HOST (x2) LAN 10/100/1000Mb/s Ethernet Wi-Fi 802.11b/g/n/ac OS Android 5.1.1 Graphic Engine OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 Accessories Included AC Power Cable, Remote Control, Wall Mount Optional Network Upgrade, Camera Warranty Warranty Period 3 Year Warranty Technical Support Lifetime -
Description Downloads Datasheet Download Technical Drawings Download
