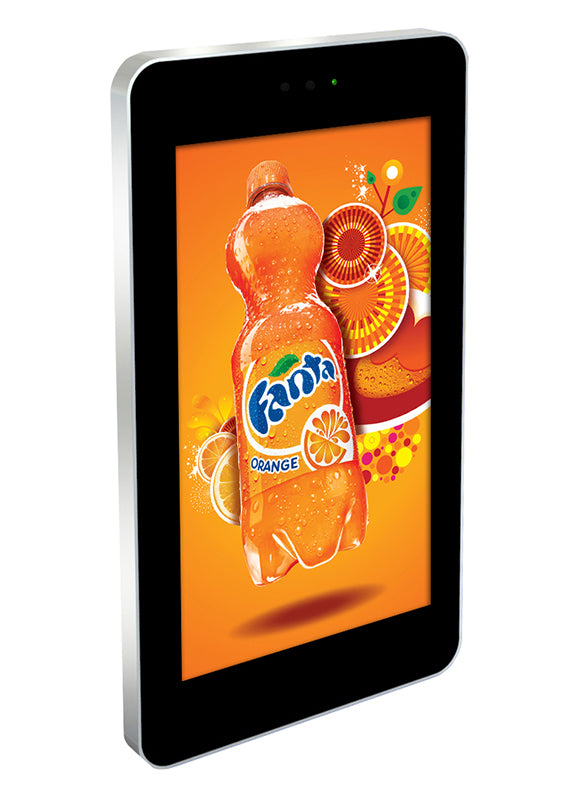

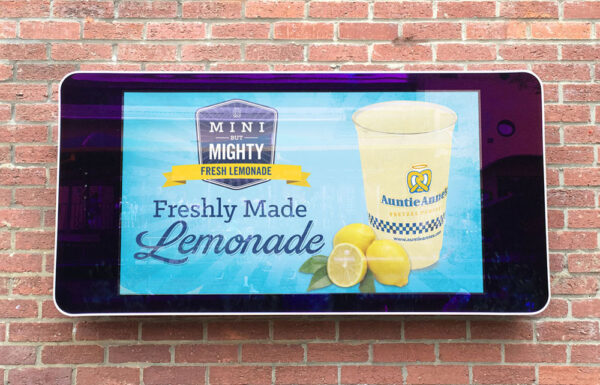

Allsee OW43D4 – 43″ Wall-Mounted Outdoor Digital Advertising Display
- Description
- Specifications
- Warranty
- Downloads
-
IP Rated Ultra High Brightness Digital Signage Solution
OUTDOOR DIGITAL ADVERTISING DISPLAYS
Fully integrated stunning tablet-style displays; perfect for any weather conditionsDirect Sunlight Readable
Thanks to their commercial grade ultra-high brightness panels (2,500cd/m²), these displays are up to 10 times brighter than a domestic TV and so are easily readable even in direct sunlight.
Weatherproof
Designed to withstand the elements, these displays are protected against all wet weather conditions and airborne dust particles by their robust IP65 rated enclosure. They also feature a waterproof coating on all internal circuit boards and waterproof over-moulded AV connectors.
Vandal Proof
With a mild steel enclosure and thermally-toughened glass front, these IK10 rated displays are designed to withstand any damage that may occur in public spaces. To avoid tampering, controls and inputs are hidden and cannot be accessed by passers-by.
Advanced Temperature Control System
To maximise the lifespan of the display, the internal airflow system keeps the screen running at the optimal temperature regardless of the external conditions. Built-in air conditioning can be tailored to allow the display to work in any climate.
Anti Reflective Glass
The front glass face is specially treated to help diffuse direct sunlight, making the display easily readable even in bright weather conditions.
Plug and Play
Plug and Play is the most straightforward way to upload content to the screen. Simply load images and videos onto a USB, insert into the display, wait for your content to copy over, then remove. Your images and videos will now play in a continuous loop.

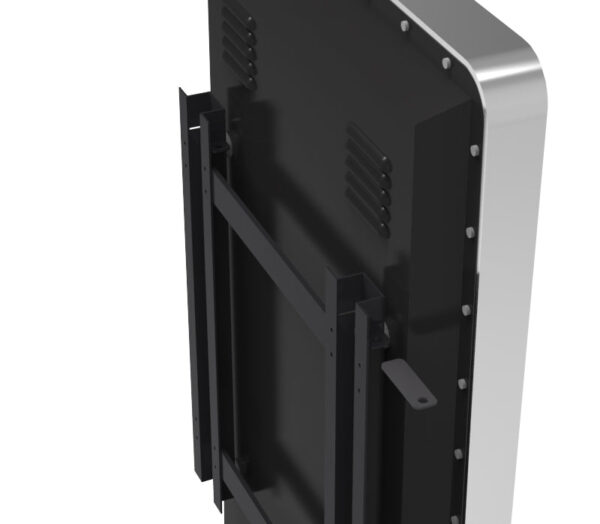

Free Lockable Wall Mount
To ensure that this a complete turnkey solution, a lockable wall mount is included at no extra cost, allowing you to securely mount your screen in either landscape or portrait orientation.
Optional Network Upgrade
For a small charge, you can upgrade your screen to be networked. This will allow you to connect your screen via Wi-Fi, LAN or 4G, and then remotely update it over the internet.
Internal Locker
Should you need run the screen from an external source, there is space to fit a small PC or media player inside the lockable compartment. This can then be connected to the display via the HDMI, VGA or 3.5mm audio inputs.
Customisation Available
Bespoke displays can be manufactured to order should you require a non-standard solution, to incorporate a camera or touch screen upgrade for example. We can also modify existing models to add a 4G module for mobile connectivity or a vinyl logo/wrap. -
Specifications Details Model OW43D4 Display Area 941×529 Unit Size 1410x670x140 Resolution 1920×1080 Brightness (cd/m²) 2,500 Colour 16.7M Pixel Pitch 0.1615×0.4845 VESA Holes (mm) 400×400 Net Weight 65kg Gross Weight 82.5kg Power Consumption (w) 250 Aspect Ratio 16:9 Viewing Angle 178° Contrast Ratio 8000:1 Ingress Protection IP65 Impact Protection IK10 Operating Temperature -20°C to 50°C Operating Humidity 10% – 80% Storage Temperature -30°C to 60°C Storage Humidity 5% – 90% Video Inputs HDMI, VGA Input Voltage AC110~240V (50Hz~60Hz) Media Formats Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG) Media Resolution 1920×1080/1080×1920 Internal Memory 6GB CPU Quad-Core [email protected] GPU Mali-T760 MP4 @600MHz RAM 2GB DDR3 Internal Storage 8GB NAND USB USB2.0 HOST (x2) LAN 10/100/1000Mb/s Ethernet Wi-Fi 802.11b/g/n/ac OS Android 5.1.1 Graphic Engine OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 Included Accessories AC Power Cable, Remote Control, Wall Mount Optional Accessories Touch Screen Upgrade, Network Upgrade, Camera -
3-year warranty.
All standard product ranges come with a 3 year warranty starting from date of invoice. This excludes Electronic Shelf Label (ESL) products which come with a 2 year warranty. This also excludes all bespoke hardware which is manufactured under OEM.Any warranty extension needs to be completed at point of order and should be clearly noted on the sales invoice.
Covers hardware failure but excludes accidental damage or user error.
All screen sizes up to and including 55”, as well as media players, are covered by a swap-out warranty. There may be some situations (such as not having a particular model in stock) where an advanced replacement product cannot be supplied, in these cases a collection, repair and return service will be implemented. Screens larger than 55” and freestanding models (“L” and “OT” ranges only, excluding “LUHB”, “LHDS”, “TAO”, “AB” and “OAB” ranges) are covered by an on-site service.
Free lifetime telephone and email technical support.
-
Spec Sheet – Advertising Display Download Link 43″ Outdoor Advertising Display – Spec Sheet Download Technical Drawings Download Link 43″ Outdoor Advertising Display – Technical Drawing Download User Manual Download Link Outdoor Advertising Displays – User Manual Download Outdoor Advertising Display – Installation Guide Download Photos Download Link Outdoor Advertising Displays – Application Images Download Outdoor Advertising Displays – White Background Images Download Signage Software Download Link Advertising Playlist Editor Download
