Allsee OT49E5 – 49″ Freestanding Outdoor Digital Poster
- Description
- Specifications
- Warranty
- Downloads
-
IP Rated Ultra High Brightness Digital Signage Totem Solution

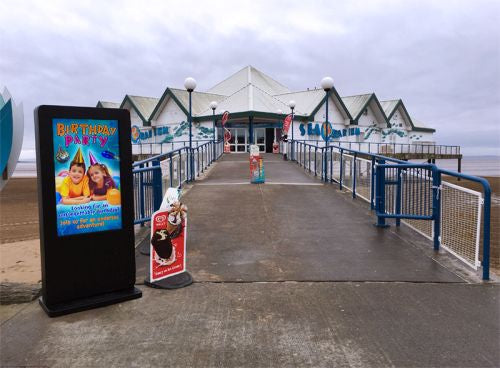

OUTDOOR FREESTANDING DIGITAL POSTERS
(43″ – 75″) Other sizes available on request
Stunning outdoor totems; perfect for any weather conditionsDirect Sunlight Readable
Thanks to their commercial grade ultra-high brightness panels (2,500cd/m²), these displays are up to 10 times brighter than a domestic TV and so are easily readable even in direct sunlight.
Vandal Proof
With a mild steel enclosure and thermally-toughened glass front, these IK10 rated displays are designed to withstand any damage that may occur in public spaces. To avoid tampering, controls and inputs are hidden and cannot be accessed by passers-by.
Weatherproof
Designed to withstand the elements, these displays are protected against all wet weather conditions and airborne dust particles by their robust IP65 rated enclosure. They also feature a waterproof coating on all internal circuit boards and waterproof overmoulded AV connectors
Advanced Temperature Control System
To maximise the lifespan of the display, the internal airflow system keeps the screen running at the optimal temperature regardless of the external conditions. Built-in air conditioning can be tailored to allow the display to work in any climate.
Easy Maintenance
Should you need to run the screen from another source, such as a small sized third party media player or PC, there is a small secure internal locker in which to place your device.
Internal Locker
Should you need run the screen from an external source, there is space to fit a PC or media player inside the lockable compartment. This can then be connected to the display via the HDMI, VGA or 3.5mm audio inputs.
Anti-Reflective Glass
The front glass face is specially treated to help diffuse direct sunlight, making the display easily readable even in bright weather conditions.
Plug and Play
Plug and Play is the most straightforward way to upload content to the screen. Simply load images and videos onto a USB, insert into the display, wait for your content to copy over and then remove. Your images and videos will now play in a continuous loop.
4K Compatible*
With four times the resolution of Full HD, get amazing picture quality for a truly immersive viewing experience when using HDMI.
Optional Network Upgrade
For a small charge, you can upgrade your screen to be networked. This will allow you to connect your screen via Wi-Fi, LAN or 4G, and then remotely update it over the internet.
Customisation Available
Bespoke displays can be manufactured to order should you require a non-standard solution, to incorporate a camera or touch screen upgrade for example. We can also modify existing models to add a 4G module for mobile connectivity or a vinyl logo/wrap. -
Category Details 49 Inch – OT49E5 Resolution 1080×1920 Display Area 1079.8×610 Unit Size 1950x870x182 Footprint 890×500 Net Weight 166kg Gross Weight 196kg Power Consumption (w) 300 Panel Aspect Ratio 16:9 Brightness (cd/m²) 2,500 Viewing Angle 178° Contrast Ratio 8000:1 AV Inputs Video HDMI, VGA Power Input Voltage AC110 240V (50Hz60Hz)Environmental Ingress Protection IP65 Impact Protection IK10 Operating Temperature -20 °C to 50°C Operating Humidity 10% – 80% Storage Temperature -30 °C to 60°C Storage Humidity 5% – 90% Computer Media Formats Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG) Media Resolution 1080×1920 Internal Memory 6GB CPU CPU Quad-Core [email protected] GPU GPU Mali-T760 MP4 @600MHz RAM RAM 2GB DDR3 ROM ROM 8GB NAND USB USB USB2.0 HOST (x2) LAN LAN 10/100M Ethernet (Network version screen only) Wi-Fi Wi-Fi 802.11b/g/n (Network version screen only) OS OS Android 5.1.1 Graphic Engine Graphic Engine OpenGL ES 1.1/2.0, OpenVG 1.1 Accessories Included AC Power Cable, Remote Control Optional Touch Screen Upgrade, Network Upgrade, Camera -
3-year warranty.
All standard product ranges come with a 3 year warranty starting from date of invoice. This excludes Electronic Shelf Label (ESL) products which come with a 2 year warranty. This also excludes all bespoke hardware which is manufactured under OEM.Any warranty extension needs to be completed at point of order and should be clearly noted on the sales invoice.
Covers hardware failure but excludes accidental damage or user error.
All screen sizes up to and including 55”, as well as media players, are covered by a swap-out warranty. There may be some situations (such as not having a particular model in stock) where an advanced replacement product cannot be supplied, in these cases a collection, repair and return service will be implemented. Screens larger than 55” and freestanding models (“L” and “OT” ranges only, excluding “LUHB”, “LHDS”, “TAO”, “AB” and “OAB” ranges) are covered by an on-site service.
Free lifetime telephone and email technical support.
-
Spec Sheet – Advertising Display Download Link 49″ Outdoor Freestanding Posters – Spec Sheet Download Spec Sheet – Touch Screen Download Link 49″ Outdoor Freestanding PCAP Touch Screen – Spec Sheet Download Technical Drawings Download Link 49″ Outdoor Freestanding Posters – Technical Drawing Download User Manual Download Link Outdoor Freestanding Posters – User Manual Download Outdoor Freestanding Posters – Installation Guide Download Photos Download Link Outdoor Freestanding Posters – Application Images Download Outdoor Freestanding Posters – White Background Images Download Signage Software Download Link Advertising Playlist Editor Download
