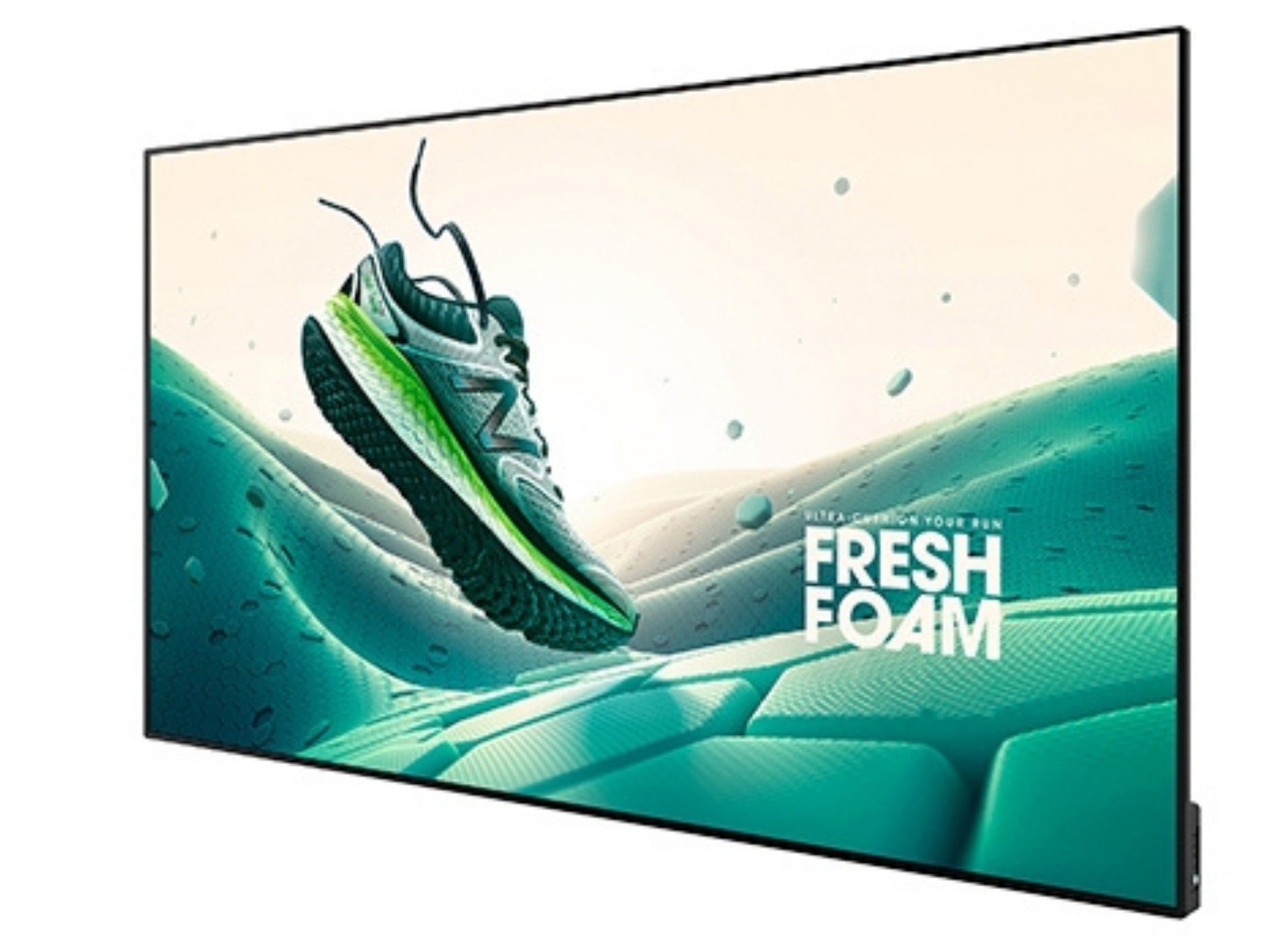

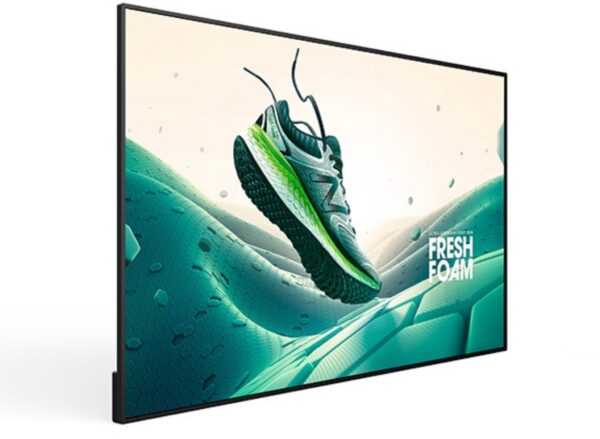

Allsee M86UHD4 – 86″ 4K Large Format Commercial Display

• Description
• Specifications
• Warranty
• Downloads

• Allsee M86UHD4 – 86″ 4K Large Format Commercial Display

  Ultra-high definition professional monitors with built-in 4K Android media player


  Lightweight Design
  By using less and lighter materials this generation is considerably lighter than the previous version, making installation and maintenance much more convenient.


  Remarkable 4K Display
  With four times the resolution of Full HD you can achieve a truly immersive experience with an incredible image quality. The 4K resolution is now compatible with the integrated Android Media Player, our CMS software, HDMI channels and third party devices, giving you ultimate flexibility.


  Integrated Android Media Player
  There is an integrated 4K Android media player inside the screen allowing you to upgrade to a network version without needing any additional hardware. You can also install third party Android apps if required.


  24/7 Commercial Use
  These displays use a commercial grade LCD panel and LED backlight. They have the ability to be in constant use 24/7 for over 70,000 hours and have no external buttons or controls to avoid tampering.


  Plug and Play
  Plug and Play is the most straightforward way to upload content to the screen. Simply load images and videos on a USB stick, insert in the display, wait for your content to copy over and then remove. Your images and videos will now play in a continuous loop.


  Slim Bezel
  The screens feature an extremely sleek and narrow bezel meaning that the enclosure to display area ratio is very low. The front is crafted from segmented aluminium to achieve ultimate precession while the polymer rear keeps the display super slim and lightweight.


  Connect Devices
  Should you need to use the screen as a monitor you can connect it to an external source, like a PC or media player, using the HDMI input.


  Eco-Friendly Power Timer
  The eco-friendly power timer allows you to assign daily or weekly on and off times for your screen meaning that it is only in use when it needs to be; improving your environmental efficiency.


  Built-In Speakers
  Take your digital signage solution to the next level by adding an audio element using the two integrated slimline speakers.

• Category	Attribute	Value
  Display	Resolution	3840×2160 (4K UHD)
  	Display Area	1895×1066 mm
  	Brightness (cd/m²)	500
  	Contrast Ratio	1200:1
  	Aspect Ratio	16:9
  	Viewing Angle	178°
  	Colour	1.07 Billion
  Dimensions	Unit Size (WxHxD)	1930.8×1101.8×76.4 mm
  	With Wi-Fi Module	1930.8×1108.9×76.4 mm
  	Package Size	2110x1227x225 mm
  	VESA Holes	800×600 M8
  Weight	Net Weight	51 kg
  	Gross Weight	60.75 kg
  Power	Avg. Power Consumption	<335 W
  Audio	Speaker Type	2 x 10W
  AV Ports	HDMI In	x3
  	HDMI Out	x1
  	USB	USB 2.0, USB 3.0, USB-C
  	Others	Audio Out, SPDIF, RS-232, RJ45 In/Out
  Environmental	Operating Temp	0°C to 40°C
  	Storage Temp	-20°C to 60°C
  	Operating Humidity	10% to 90%
  	Storage Humidity	10% to 90%
  Media Player	Media Formats	Video, Audio, Image
  	Media Resolution	3840×2160
  Computer	CPU	A55×4 (64-bit)
  	RAM	4GB
  	GPU	Mali G52MP2
  	Storage	32GB eMMC
  	USB	USB 2.0, USB 3.0
  	LAN	100/1000 Ethernet
  	Wi-Fi	802.11b/g/n/ac (2.4G & 5G)
  	OS	Android 11
  Accessories	Included	Remote, Manual, Power Lead
  	Optional	Network Upgrade

• Warranty

  3-year warranty.
  All standard product ranges come with a 3 year warranty starting from date of invoice.

  Any warranty extension needs to be completed at point of order and should be clearly noted on the sales invoice.

  Covers hardware failure but excludes accidental damage or user error.

  All screen sizes up to and including 55”, as well as media players, are covered by a swap-out warranty. There may be some situations (such as not having a particular model in stock) where an advanced replacement product cannot be supplied, in these cases a collection, repair and return service will be implemented. Screens larger than 55” and freestanding models (“L” and “OT” ranges only, excluding “LUHB”, “LHDS”, “TAO”, “AB” and “OAB” ranges) are covered by an on-site service.

• Description	Downloads
  Allsee M86UHD4 – 86″ 4K Large Format Commercial Display Spec Sheet	Downloads
  Allsee M86UHD4 – 86″ 4K Large Format Commercial Display User Manual	Downloads
  Allsee M86UHD4 – 86″ 4K Large Format Commercial Display Technical Drawing	Downloads
