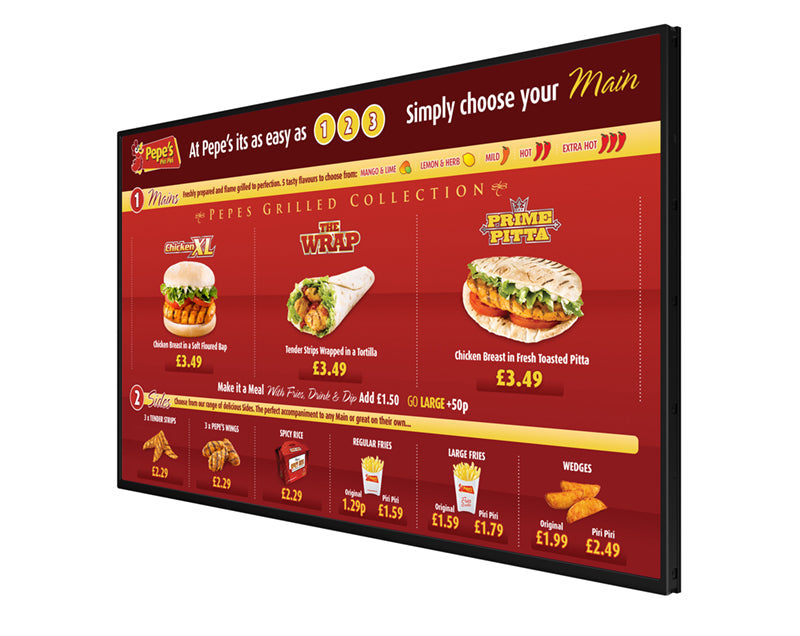

• Allsee DM32D – 32″ Network Digital Menu Board | Full HD


  Cost-effective package solution; 24/7 commercial grade displays with built-in network media player and 1 year CMS software subscription

  Update Over the Internet
  Updating your Digital Menu Boards is extremely simple; connect it to your network using the integrated Wi-Fi or using an Ethernet cable. Login to www.MySignagePortal.com to choose from a library of templates, upload your own media, manage playlists, create your own templates and schedule content for whenever you want; giving you complete control over your screens. No special software installation or dedicated PC is required, you can update your screens from anywhere in the world with an internet connection.


  1 Year Free Software Licence
  With our package the first year of using our cloud based content management system is absolutely free. You don’t pay anything for 12 months and get full unrestricted access to the software as well as lifetime technical support. You can also purchase 3 additional year’s access at the point of purchase or make a one off payment to have access for life.

  Template Library
  Browse and choose from our exclusive library of Digital Signage templates. Within each predesigned template you get the original media files, template layout and playlist. You can customise each of these to just how you would like. You can add your own prices, branding, images or videos. Change the font size or colour; the templates are fully adaptable to your needs.

  Multi-Screen Synchronisation
  You can synchronise your Digital Menu Boards across multiple screens provided they are connected to the same network. This is ideal for menus above the counter.


  24/7 Commercial Grade IPS Panel
  With a commercial grade IPS panel with a brightness of 450cd/m² (twice the brightness of domestic televisions) this Digital Menu Board is able to reproduce and maintain the ultimate colour temperature for lifelike images even in the most challenging lighting environments. With a lifespan of over 70,000 hours the screen can be in use 24/7 with no loss in image quality. There are no external buttons or controls on the screen to avoid tampering.


  Narrow Bezel
  The narrow bezel on the Digital Menu Boards allows your menu to take centre stage. When multiple Digital Menu Boards are placed side by side there is a virtually seamless display thanks to their thinner edges and superior image precision.


  Portrait or Landscape
  The screen can be used in either a landscape or portrait orientation depending on your requirement.


  Integrated Speakers
  The displays have two integrated speakers for applications that involve an audio element.


  Plug and Play
  If there is no internet access available the screen can still be updated thanks to their backup USB update option. Simply package up your Playlist onto a USB stick and insert into the screen. Your templates, schedule and content will now copy over and start playing.


  Eco Power Timer
  Allows for reduced power usage by automatically powering off in hours that the displays are not required. You can set daily or weekly On/Off times for your displays.


  Scrolling Text Message
  Display a ticker tape message or live RSS feed. From here you can adjust the font, size, colour, speed and direction of the text.;

• Category	Attribute	Value
  Display	Resolution	1920×1080
  	Display Area	698.4×393 mm
  	Brightness (cd/m²)	450
  	Aspect Ratio	16:9
  	Colour	16.7M
  	Viewing Angle	178°
  	Contrast Ratio	4000:1
  Dimensions	Unit Size	716.2x415x45.95 mm
  	Package Size	870x565x170 mm
  	VESA Holes	400×200
  Weight	Net Weight	8.6 kg
  	Gross Weight	11.8 kg
  Power	Power Consumption	38 W
  Audio	Speaker Type	5W, 8Ω (x2)
  Inputs	Video	HDMI, VGA
  	Audio	3.5mm Audio Socket
  Environmental	Operating Temp	0°C to 50°C
  	Storage Temp	-30°C to 60°C
  	Operating Humidity	10% to 80%
  	Storage Humidity	5% to 95%
  Computer	Media Formats	Video, Audio, Image
  	Media Resolution	1920×1080 / 1080×1920
  	CPU	Quad-Core ARM Cortex A17, 1.6GHz
  	GPU	Quad-Core ARM Mali-T764
  	RAM	DDR3 2GB
  	USB	1x USB (OTG/HOST), 1x USB (HOST)
  	LAN	100M/1000M (Network Version Only)
  	Wi-Fi	802.11b/g/n (Network Version Only)
  	OS	Android 7.1
  	Graphic Engine	OpenGL ES, OpenCL, Direct3D 11.1
  Accessories	Included	Software, Remote, Manual
  	Optional	Mounts, Floor/Stand/Trolley

• Warranty

  3-year warranty.
  All standard product ranges come with a 3 year warranty starting from date of invoice.

  Any warranty extension needs to be completed at point of order and should be clearly noted on the sales invoice.

  Covers hardware failure but excludes accidental damage or user error.

  All screen sizes up to and including 55”, as well as media players, are covered by a swap-out warranty. There may be some situations (such as not having a particular model in stock) where an advanced replacement product cannot be supplied, in these cases a collection, repair and return service will be implemented. Screens larger than 55” and freestanding models (“L” and “OT” ranges only, excluding “LUHB”, “LHDS”, “TAO”, “AB” and “OAB” ranges) are covered by an on-site service.
