Allmounts AS37810T Tilting Wall Mount For 60″-100″ Screen – VESA 1000×800

• Description
• Specifications
• Downloads

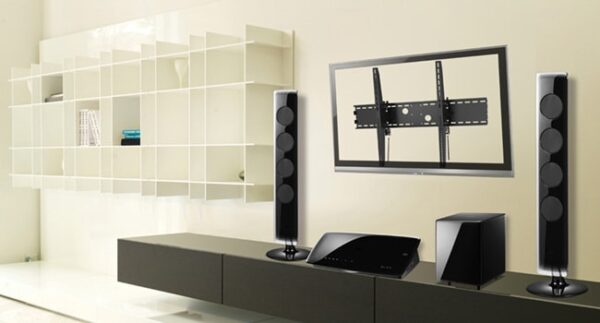

• Allmounts AS37810T Tilting Wall Mount – VESA 1000×800

  Tilting range of -15° to +15°
  Suitable for most 60″-100” screens
  Fit mounting patterns up to 1098x807mm
  Maximum VESA pattern: 1000x800mm
  Mounting profile from wall: 130mm
  Maximum weight capacity: 100kg/220lbs
  Open design for easy cable and electrical access

• Mount Type	Tilting Landscape Wall Mount
  Mounting Pattern	Universal
  Material	Steel
  Material Thickness	2mm
  Recommended Screen Size	60″-100″
  Weight Capacity	100kg/220lbs
  Load Tested	4 times weight capacity approved
  Compatible VESA Patterns	200×200, 400×200, 300×300, 400×400, 600×400, 800×400, 800×600, 1000×400, 1000×600, 1000×800
  Maximum VESA Pattern	1000×800
  Tilt	-15° to +15°
  Swivel	0°
  Level Adjustment	0°
  Rotation	0°
  Profile	130mm

• Description	Downloads
  Technical Drawing	Download
  CAD Drawing	Download
  Data Sheet	Download
  Installation Guide	Download
