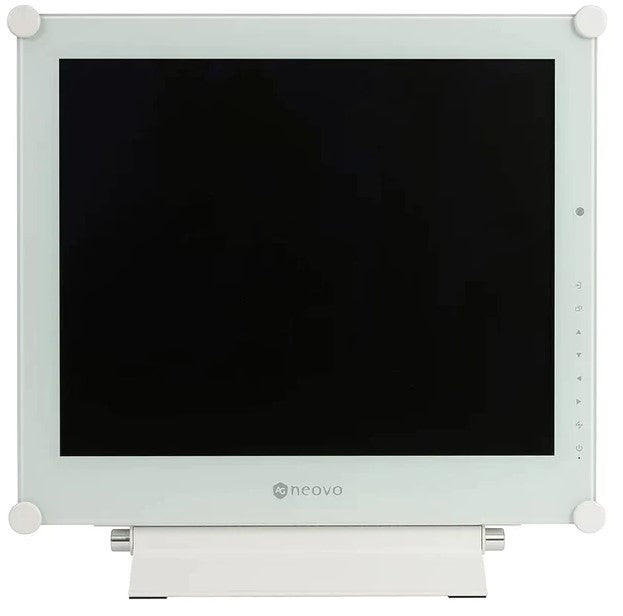

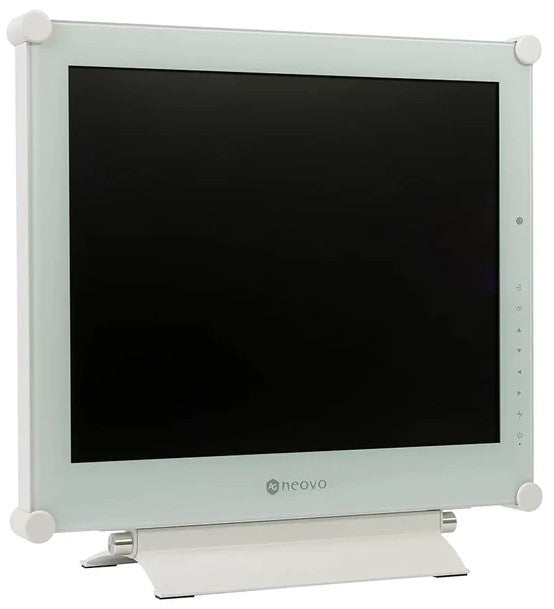

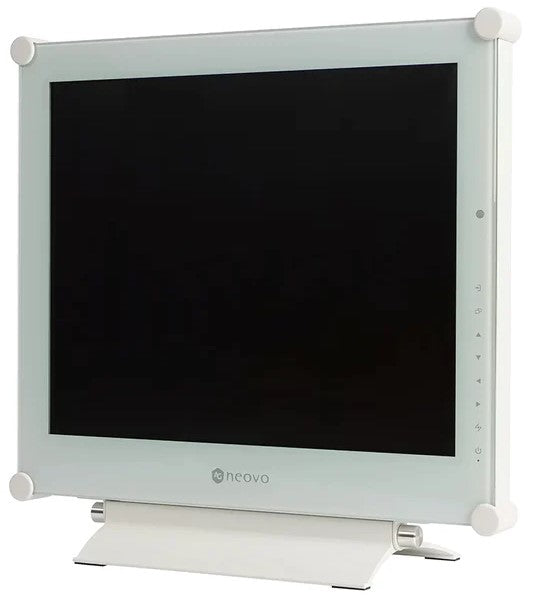

Ag Neovo 17″ 5:4 Dental Monitor | DR-17G

• Descriptions
• Specifications
• Warranty

• Ag Neovo 17″ 5:4 Dental Monitor

  NeoV™ Optical Glass and metal housing for clinical hygiene
  Medical adapter certified to the IEC/EN 60601-1 medical design
  PiP/PbP functions enable multi-source viewing simultaneously
  Optional X-ray clip and handle for easy movement
  Quickly switch to X-ray film viewing mode

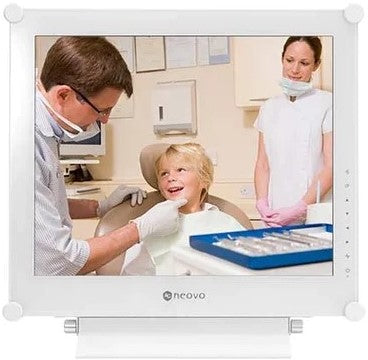

  The AG Neovo DR-17G is a 17” dental monitor that features a quick switch to X-ray illuminator mode for dental X-ray film viewing without using another X-ray view box. With advanced gamma correction, black-level alignment adjustability, and high contrast ratio, the dentists can verify the patient’s condition of teeth, jaw placement, and facial bone before dental treatment. The NeoV™ Optical Hard Glass Screen and white metal casing design meet an array of medical level cleaning requirements, allowing dental professionals to clean and sanitise the monitors.

  EASY CLEAN AND ROBUST PROTECTION
  The special design of NeoV™ Optical Hard Glass, front-sided IP22 compliance, and white metal casing prevent dust and waterproof for easy clean and robust protection.

  QUICK SWITCH TO X-RAY VIEWING MODE
  The DR-17G 17-inch dental monitor integrates hotkey operation to switch X-ray viewing mode without using another X-ray view box

  DC 24V MEDICAL-GRADE POWER ADAPTER FOR A LONGER DISTANCE CONNECTION
  Designed with DC 24V power supply, it is
  ideal for long-distance (up to 5 meters) cable management between dental equipment and displays. The medical power supply with IEC / EN60601-1 certified ensures safety, performance, and reliable operation in any professional medical environment.

  PIP/PBP SUPPORT
  Enhance work efficiency with PiP/PbP support for multitasking.


• Feature	Specification
  Panel Type	TN
  Size	17.0″
  Max. Resolution	SXGA 1280 x 1024
  Pixel Pitch	0.264 mm
  Brightness	250 cd/m²
  Contrast Ratio	20,000,000:1 (DCR)
  Viewing Angle (H/V)	170°/160°
  Display Colour	16.7M
  Colour Gamut	NTSC 72%
  Response Time	3 ms
  Frequency (H)	24 kHz-83 kHz
  Frequency (V)	50 Hz-75 Hz
  Signal Input	DisplayPort, HDMI, DVI, VGA, Composite, S-Video
  Signal Output	Composite BNC x 2
  External Control	RS232 In
  Other Connectivity	USB 2.0 x 1 (Service Port), Audio In/Out
  Internal Speakers	2W x 2
  Power Supply	External
  Power Requirements	DC 24V, 2.71A
  On Mode Power Consumption	13W
  Standby Mode Power Consumption	< 0.5W
  Off Mode Power Consumption	< 0.3W
  Glass Thickness	3.0 mm (0.12″)
  Reflection Rate	< 1%
  Transmission Rate	> 97%
  Hardness	> 9H
  Operating Temperature	0°C-40°C (32°F-104°F)
  Operating Humidity	10%-90% (non-condensing)
  Storage Temperature	-20°C-60°C (-4°F-140°F)
  Storage Humidity	5%-95% (non-condensing)
  Mounting	VESA FPMPMI (100 x 100 mm & 75 x 75 mm)
  Stand Tilt	0° to 22°
  Kensington Security Slot	Yes
  Product with Base (W x H x D)	409.4 x 398.2 x 175.0 mm (16.1″ x 15.7″ x 6.9″)
  Product w/o Base (W x H x D)	409.4 x 361.9 x 64.5 mm (16.1″ x 14.3″ x 2.5″)
  Packaging (W x H x D)	506.0 x 506.0 x 225.0 mm (19.9″ x 19.9″ x 8.9″)
  Product with Base Weight	6.1 kg (13.4 lb)
  Product w/o Base Weight	5.4 kg (11.9 lb)
  Packaging Weight	8.1 kg (17.9 lb)
  Certifications & Compliance	CE, FCC, LVD, BSMI, WEEE, RoHS, REACH, UKCA, EAC, IEC/EN 60601-1, IEC/EN 60601-1-2
  Supplied Accessories	Audio Cable, Power Adaptor, Power Cord, Quick Start Guide, VGA Cable, Warranty Card
  Optional Accessories	Handle (HDL-01), Ceiling Mount (Landscape only) (CMP-01 + WMK-03), Wall Mount (Landscape only) (PMK-01, WMA-01, WMK-01, WMK-03), Desk mount (Landscape only) (DMC-01, DMC-02D, DMS-01D, ES-02)

• AG Neovo provides the following limited warranty. This limited warranty applies only to the original End User and to no other purchaser or transferee.

  FOR LCD DISPLAYS

  AG Neovo warrants its LCD Monitor products and parts against defects in materials and workmanship under normal use for a period of Three (3) Years for parts from the date of initial retail purchase. AG Neovo warrants LCD Panel for a period of Three (3) years from the date of initial retail purchase. During this period, AG Neovo will repair or replace a defective product or part without charge.

  Changes to or updates of the following warranty conditions and procedures can be found at the AG Neovo website or may be obtained from AG Neovo by contacting your local AG Neovo office.



  WHAT THE WARRANTY COVERS

  The AG Neovo warranty obligations for the product are limited to the terms set forth below.

  1. AG Neovo warrants the product against defects in materials for a period of three (3) years for all series of TFT LCD panel and three (3) years for parts.
  2. With respect to LCD display pixel quality inspection of the defective display pixels must be performed in black screen. A maximum of 3 bright pixels or 3 dark pixels is allowed in an LCD panel; the total number of dark and bright pixels should not exceed 3 pixels for the whole area.
  3. If a defect arises within the warranty period, please contact the AG Neovo service centre; you should provide your products serial number, and your contact information, such as address, and phone number.
  4. AG Neovo warrants replacement products or parts provided under this warranty against defects in materials and workmanship from the date of the replacement or repair for ninety (90) days or for the remaining portion of the original product’s warranty, whichever provides longer coverage.



  WHAT THE WARRANTY DOES NOT COVER

  1. Products on which the serial number has been defaced, modified or removed;
  2. Products, which are not accompanied by a copy of the original invoice or where information on the original invoice has been altered or erased in any manner whatsoever.
  3. Damage, deterioration or malfunction resulting from:
     • Accident, abuse, misuse, neglect, fire, water/liquids, lightning, or other acts of nature, unauthorised product modification, or failure to follow instructions supplied with the Products.
     • Repair or attempted repair by anyone not authorised by AG Neovo.
     • Any damage of the Products due to shipment.
     • Removal or installation of the Products.
     • External causes to the Products, such as electric power fluctuations or failure.
     • Use of supplies or parts not meeting the specifications of AG Neovo.
     • Normal wears and tear.
     • Any other cause, which does not relate to a Product defect.
     • Damage to, or abuse of, the coating on the surface of the display.
     • Scratched or broken panel.
     • Cracked Printed Circuit Board or abused housing and/or base.
     • Exposure to an excessive dusty and/or humid environment.
     • Because LCD panel is the liquid characteristic, damage caused by static (non-moving) images displayed for lengthy periods of time (also referred to as “burn-in”).

  AG Neovo has the right to revise the policy.

  Please contact local AG Neovo office to get detailed information.

  ---



  FOR ACCESSORIES

  AG Neovo warrants its accessories to be free from defects in material and workmanship under normal operating conditions for a period of 12 months limited warranty.

  Changes to or updates of the following warranty conditions and procedures can be found at the AG Neovo website or may be obtained from AG Neovo by contacting your local AG Neovo office.



  WARRANTY CONDITIONS

  1. The warranty applies only to products distributed by AG Neovo.
  2. The warranty applies only to defects in material or workmanship as limited above and does not include normal wear items. The warranty applies only to defects which occur during normal use and does not extend to damage to products or parts which results from alterations, repairs, modifications, faulty installation or service by anyone other than an authorised AG Neovo Service Centre; damage to products or parts caused by accident, abuse, misuse, maintenance, mishandling, misapplication, or use in violation of instructions furnished by us; damage which occurs in shipment or any damage caused by an act of God, such as lightning or line surges.
  3. You must retain your bill of sale, invoice or receipt.
  4. Any replacement parts provided to the purchaser in fulfillment of this warranty does not extend the warranty period only the residual portion of the original warranty period remains.

  AG Neovo has the right to revise the policy.

  Please contact local AG Neovo office to get detailed information.

  For information on obtaining warranty service, call your AG Neovo dealer, AG Neovo’s Customer Support hotline, or email service centers.

  Europe |  +31-10-442-57-37 | [email protected]
