Adastra UA Series Compact 100V Mixer-Amplifiers | 953.183UK
- Description
- Specifications
-
Adastra UA Series Compact 100V Mixer-Amplifiers

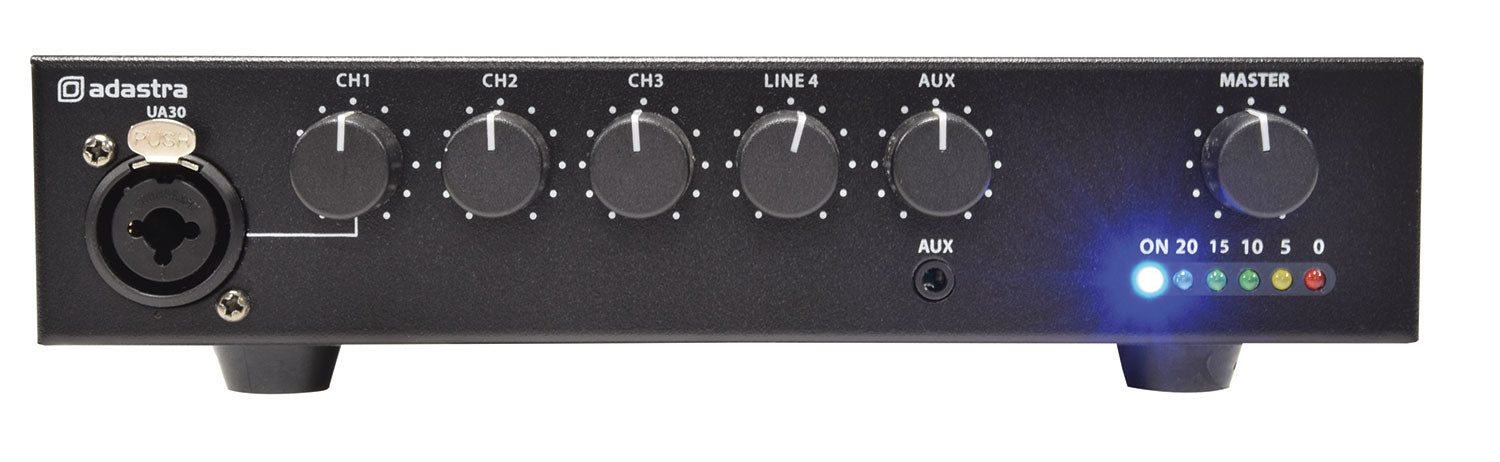

Adastra UA30 – 30W RMS Mixer/Amplifier
100V mixer-amplifiers with an integral mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.
Features
Supplied with hardware for rack-mounting 2 units
5 input channels
24V fire alarm mute contacts
100V line or 8 Ohms operation -
Attribute Details Output Power 30W RMS Dimensions 249 x 210 x 44 mm Weight 2.35 kg Power Supply 170-264V AC, 50Hz (IEC) Amplifier Construction Class D + Transformer Output Inputs Mic/Line (Combo), 2 x Mic/Line (6.3mm), Line (RCA), Aux (3.5mm) Phantom Power +20V CH1 (XLR or Rear Terminals) Line Output 2 x RCA (Mono) Speaker Output Euroblock Terminals: 100V / 8 Ohms / Com Mute 24V Relay Contacts THD <0.4% @ 1kHz Input Impedance 1k Ohms (Mic/Line) Input Sensitivity -10dB (Line), -45dB (Mic) SNR 80dB (Line), 75dB (Mic) Frequency Response 100Hz – 18kHz
