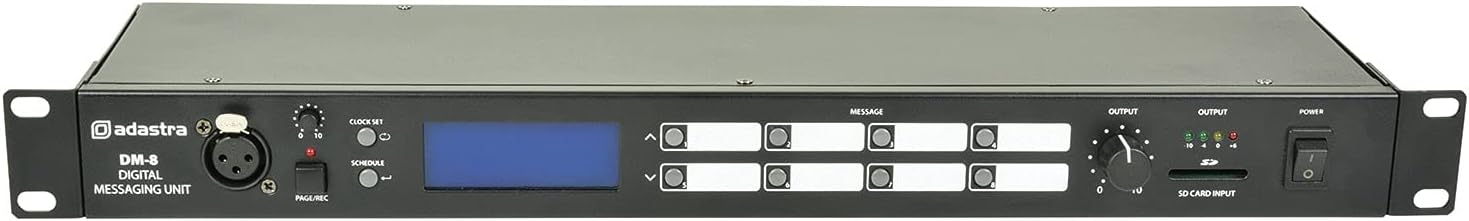

Adastra DM-8 Digital Messaging Unit
Adastra DM-8 Digital Messaging Unit
1U rack-mount digital messaging unit for scheduled audio playback. Audio files are stored on a removable SD card and may be transferred by inserting into a PC or Mac computer or directly recorded o…
Up to 99 audio tracks stored on SD card.
Up to 99 schedule events stored on SD card.
Schedule file editable via PC/Mac.
Product Description
1U rack-mount digital messaging unit for scheduled audio playback. Audio files are stored on a removable SD card and may be transferred by inserting into a PC or Mac computer or directly recorded on the DM-8. Schedules are also stored on the SD media as a separate file, which can be edited with a computer and stored for backup. Separate SD cards may be saved with different audio messages and schedules and swapped for different routines. A mic/line input can be used for recording or for live announcements which can override SD playback. A BGM line input is provided for background music playback with its own level control and is muted when messages are playing or during paging. Up to 99 schedules can be programmed to play a particular audio file from the SD card, set by 24 hour time and day(s) of the week. The DM-8 can be added to any sound system to provide automated playback of timed announcements, music or audio alerts.
Up to 99 audio tracks stored on SD card.
Up to 99 schedule events stored on SD card.
Schedule file editable via PC/Mac.
Mic/Line input for recording or live announcements.
BGM line input for background music. -
Feature Details Power Supply 100-240Vac, 50/60Hz or 24Vdc Fuse T1AL 250V Battery CR2016 button cell (internal clock) Inputs Paging mic/line (XLR or terminals), BGM (RCA) Output Mono balanced terminal or unbalanced RCA Audio Source Internal SD card player Time Setting 99 programmable schedules – 24 hour + day(s) setting Mic/Line Channel Controls Mic/Line level, Phantom power on/off Phantom Power +20V Input Impedance 2.2k Ohms (mic/line) Controls Page/Rec, Mic, Clock Set, Schedule, Message 1-8, Output, Power on/off Trigger Message 1-8, Stop & Ground contacts SD Card Requirements 4-32GB FAT32 (full size or with adaptor) Dimensions (W×H×D) 483 x 150 x 44mm Weight 1.65kg In the Box DM-8 digital messaging unit, IEC mains lead(s)
