9 Pin Mini DIN AV Connector breakout PCB for RGB modding various retro games consoles | ZedLabz
Features:
– Simple breakout PCB for Mini Din AV ports.
– Compatible with 9 pin mini din female through hole connector
– ENIG gold plated PCB providing wire soldering pads
– ideal for RGB mods on various consoles
– Designed by DB-electronics as open source
Description:

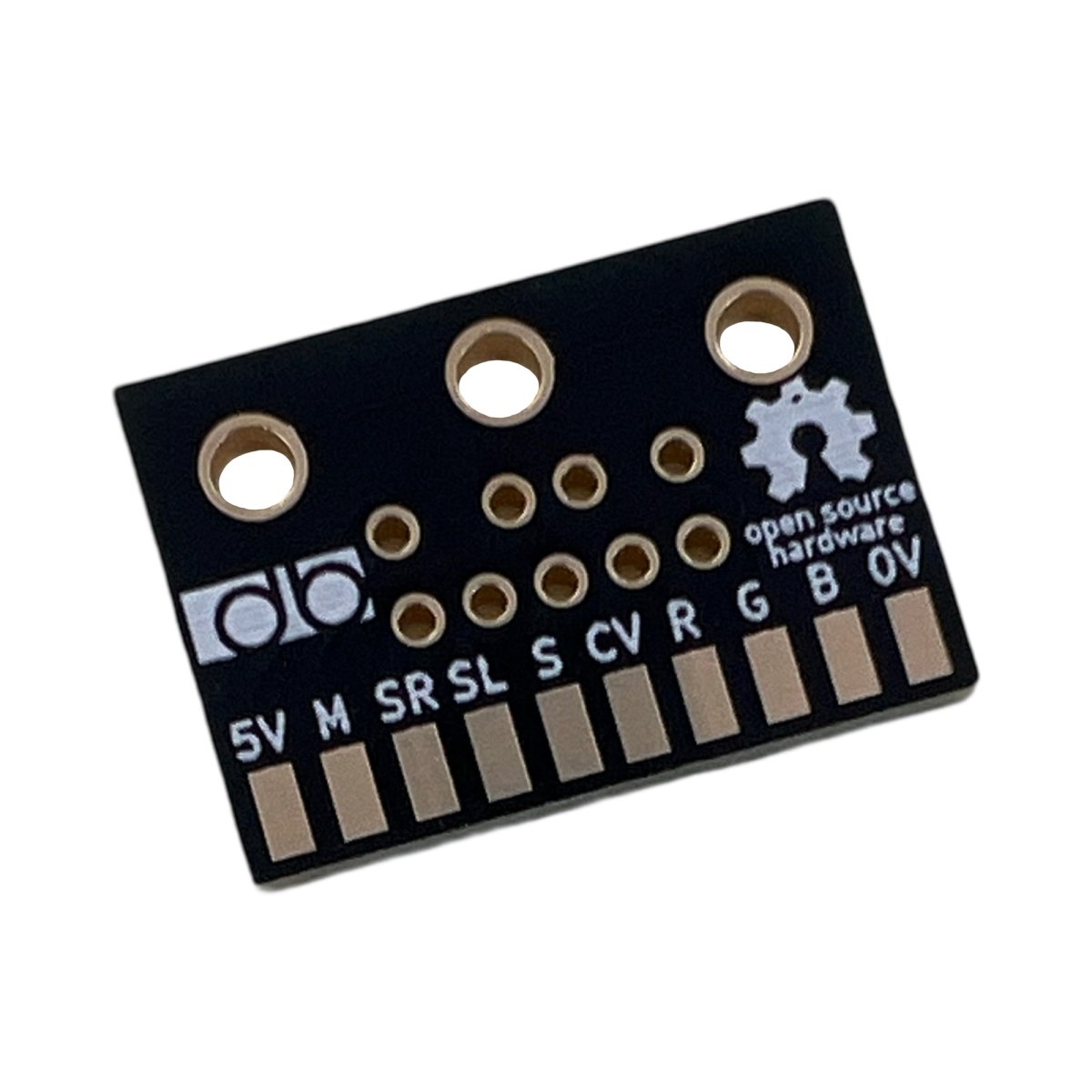

A simple breakout board that is useful for various AV RGB modding in retro consoles, it simply provides an easier way to connect the wires to the relevant pins inside a 9 pin mini din port.
Compatible with 9 Pin through hole mini din female connectos such as the one we stock here: https://www.zedlabz.com/products/9-pin-mini-din-av-connector-for-sega-mega-drive-genesis-pc-engine-nes-kycon?
Licensing:
This design has been made available under the a CERN Open Hardware Licence version 1.2 which allows commercial use of the design. Thanks goes to DB-Electronics for making this design open source, you can find out more about this design and DB-electronics by visiting the following Git-hub page: https://github.com/db-electronics/MD-90SM-breakout-kicad
